Fuel tank

General discussion area relating to the Ford Puma, any off topic or threads that are deemed chat/waffle will be moved to the relevant areas! Please keep ON TOPIC at all times.

Moderator: Moderators

Post Reply
Tigdlo
Project Teen!
Project Teen!
Posts: 16
Joined: Wed Oct 26, 2016 10:51 pm
Model: 1.7
Location: N Herts

Fuel tank

Post by Tigdlo » Wed Jul 10, 2019 3:57 pm

I am about to remove the fuel tank from my 2000 1.7 because I will be welding very close to that area, and I’m not yet ready for my celestial wings!
The tank will be inspected before refitting, and I’m not expecting any problems with it, but I wondered if it was the same as a Fiesta tank if it did need replacing?
0 x

User avatar
red
Site Administrator
Site Administrator
Posts: 11102
Joined: Wed Oct 03, 2007 4:31 pm
Model: Other
Location: Cambridgeshire
Contact:

Fuel tank

Post by red » Wed Jul 10, 2019 4:10 pm

According to this you can fit a Fiesta one providing it's for the right year. There's apparently some differences with the breather pipe but it isn't a show stopper.
0 x
FRP#0201 (2000) 2009-2011
Melina Blue (1999) 2006-2009
Moondust Silver (2000) 2006

Tigdlo
Project Teen!
Project Teen!
Posts: 16
Joined: Wed Oct 26, 2016 10:51 pm
Model: 1.7
Location: N Herts

Fuel tank

Post by Tigdlo » Wed Jul 10, 2019 4:35 pm

That’s great, thank you!
0 x

User avatar
red
Site Administrator
Site Administrator
Posts: 11102
Joined: Wed Oct 03, 2007 4:31 pm
Model: Other
Location: Cambridgeshire
Contact:

Fuel tank

Post by red » Wed Jul 10, 2019 5:00 pm

No worries.
0 x
FRP#0201 (2000) 2009-2011
Melina Blue (1999) 2006-2009
Moondust Silver (2000) 2006

User avatar
XAF
Project Petrol Head!
Project Petrol Head!
Posts: 1023
Joined: Sun Apr 08, 2012 6:33 pm
Model: 1.7

Fuel tank

Post by XAF » Wed Jul 10, 2019 7:50 pm

The vast majority of the aftermarket tanks don’t have the same shape swirl pot inside, and the sender unit gets caught so be very careful that what you buy will work.
0 x
2000 Puma Lux
2000 FRP #477

Tigdlo
Project Teen!
Project Teen!
Posts: 16
Joined: Wed Oct 26, 2016 10:51 pm
Model: 1.7
Location: N Herts

Fuel tank

Post by Tigdlo » Thu Jul 25, 2019 11:31 pm

Well, I successfully removed the tank, as I have to do some welding and grinding in that area. Not too bad a job apart from undoing the hose clips on the filler and breather hoses.
It would appear that I have been lucky, in that the the tank is still serviceable - just! Whereas the underside looks great, the top half, which is normally hidden, had some localised corrosion but no perforations. Left another year, and the tank would probably fail. I have carefully removed all the crusty bits, treated it with Jenolite, and will probably give it a coat of POR15.
I did discover that the filler hose is starting to degrade, presumably due to the modern petrol. It has become very soft and slightly porous. Looking online for a suitable replacement, it appears that anything that is not mega expensive won’t tolerate constant contact with petrol. Has anyone here found a suitable source at a reasonable price?
1 x

User avatar
red
Site Administrator
Site Administrator
Posts: 11102
Joined: Wed Oct 03, 2007 4:31 pm
Model: Other
Location: Cambridgeshire
Contact:

Fuel tank

Post by red » Fri Jul 26, 2019 9:51 am

It depends which part you mean, just had a quick look back through and can see it's in 3 pieces apparently.

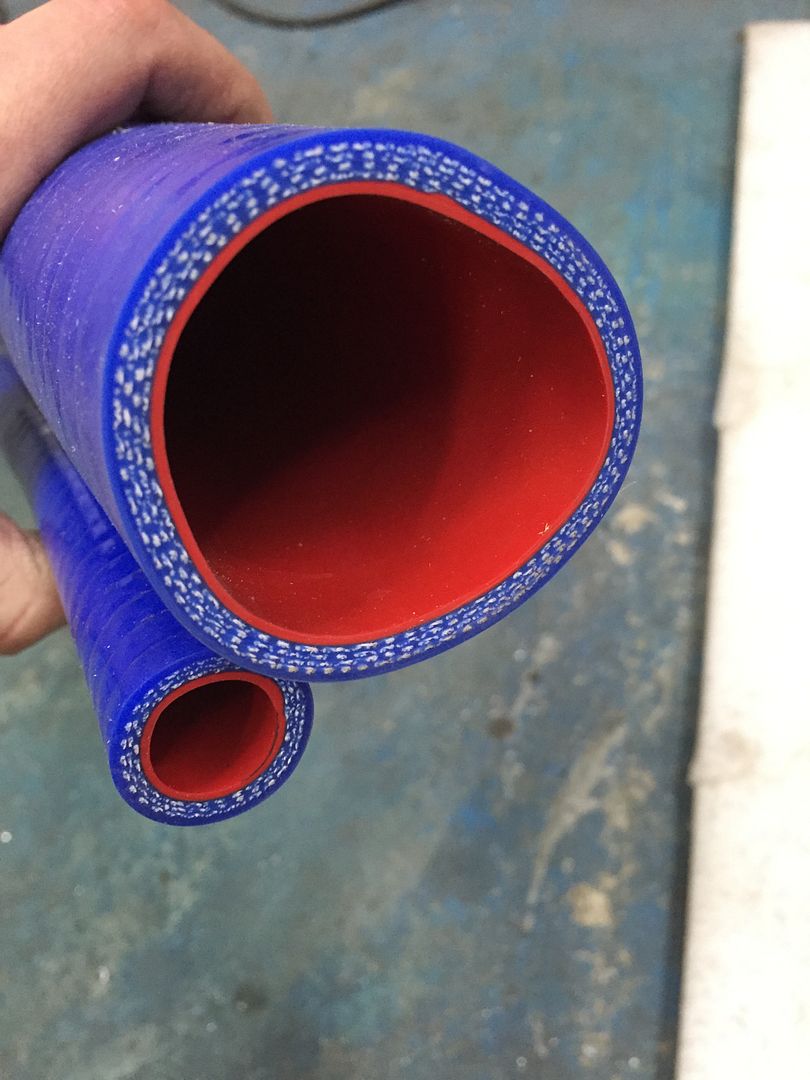

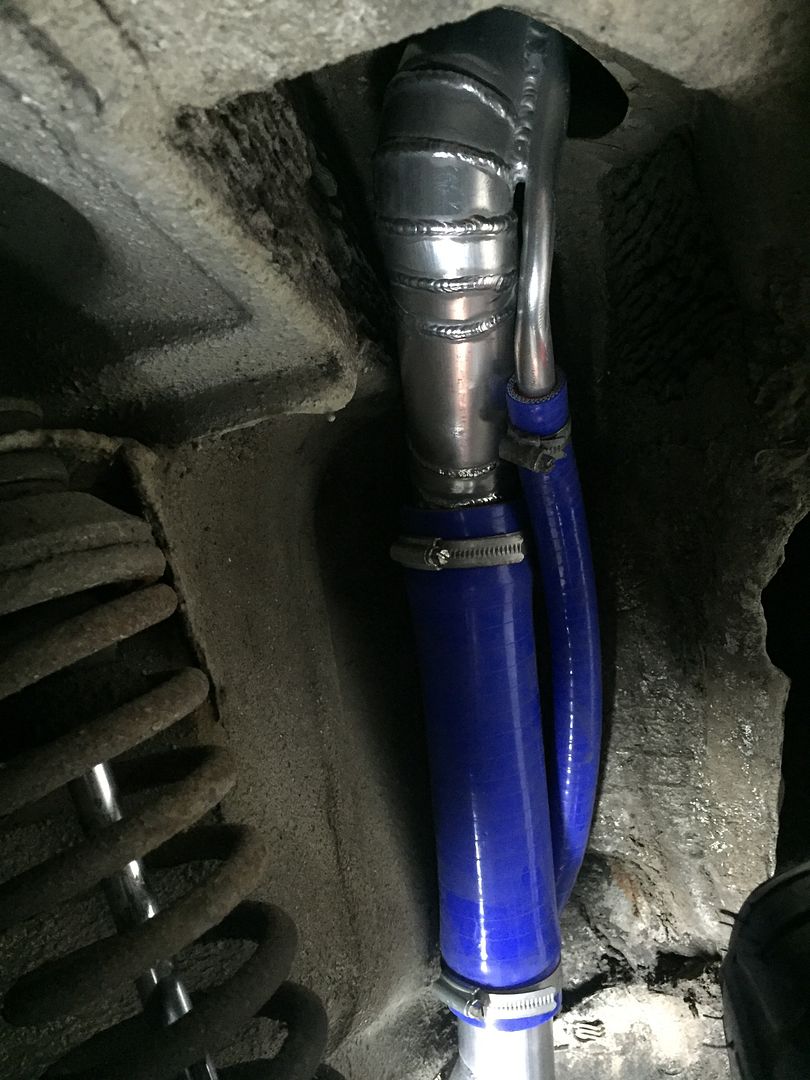

McCloud 85 used this type of hose in his build and someone asked him whether they are suitable for petrol, he said "Those silicone hoses used are fluoro lined which makes them resistant to fuel and oil. Below is a pic showing the inner lining of them"

0 x
FRP#0201 (2000) 2009-2011
Melina Blue (1999) 2006-2009
Moondust Silver (2000) 2006
