Re: My Puma 1.7, more than a year on (A works in progress)

Post by tuonokid » Sat Feb 15, 2014 11:11 pm

Yeah and believe it or not I'd still call it in good condition compared to many others. If only Ford had galvanised the shells and charged £500 extra.
Barry
0 x
2001 ColOrado red Puma 1.7, work in progress.
Westfield SEIW 1800 Zetec.
Building Westfield SEI 2.0 Zetec Blacktop on TBs.
Fiesta Style 1.25
Aprilia Tuono Factory.
1975 Yamaha TY80
Now working on my sons Anglia 105e

My Project Link - http://www.projectpuma.com/viewtopic.php?f=64&t=23509" onclick="window.open(this.href);return false;

User avatar
tuonokid
Project Elder
Project Elder
Posts: 3760
Joined: Fri Nov 23, 2012 8:41 pm
Model: 1.7
Location: Huddersfield

My Puma 1.7, more than a year on (A works in progress)

Post by tuonokid » Wed Feb 19, 2014 11:20 pm

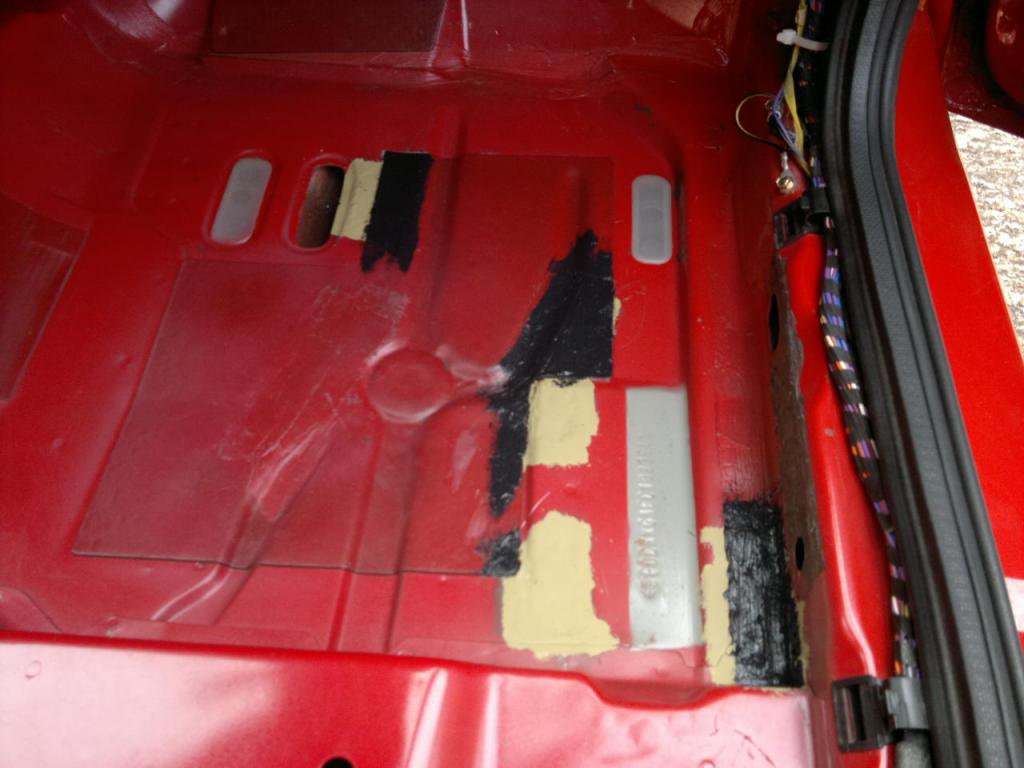

Back to my work on the Floorpans.

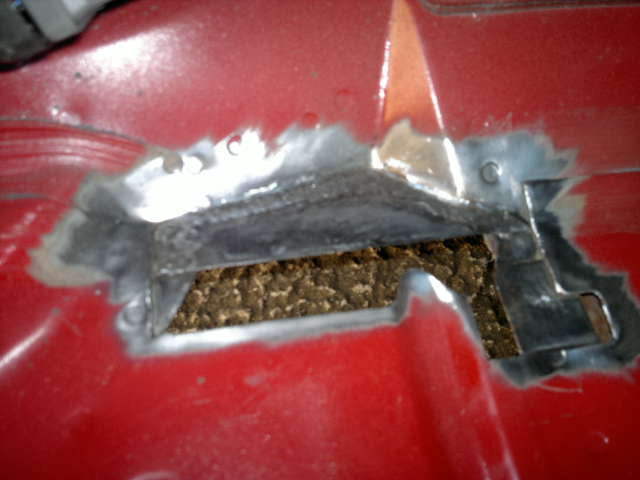

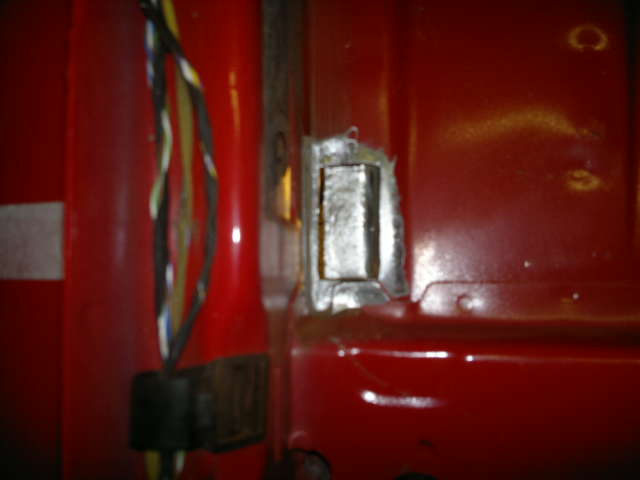

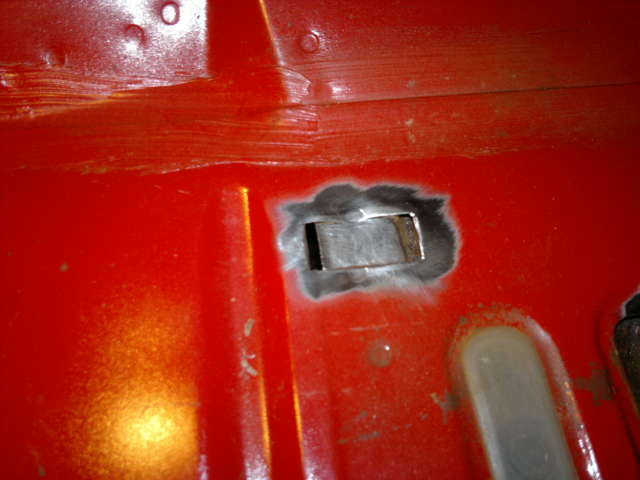

The really corroded bit of floorpan above was cut out and ended up like this :

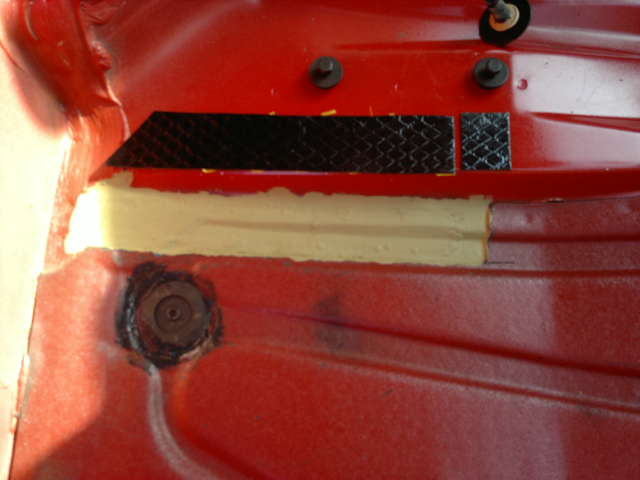

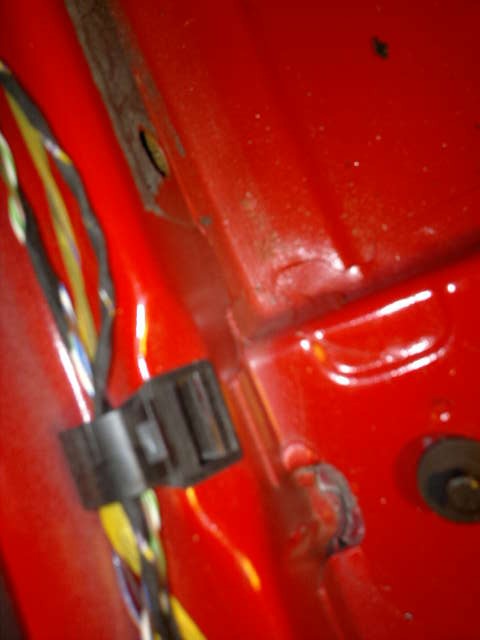

Trouble is the strengthener seam is not visible under the car as it's covered with another strengthener and is fairly corroded. If I still had my Oxy set I could warm it up and run some weld in but I only have the mig now and that will just blast holes in it. I will just have to weld where the existing spot welds were as they are still sound.

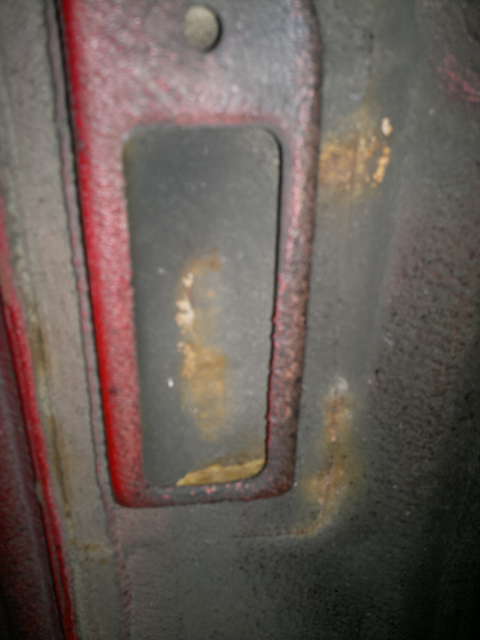

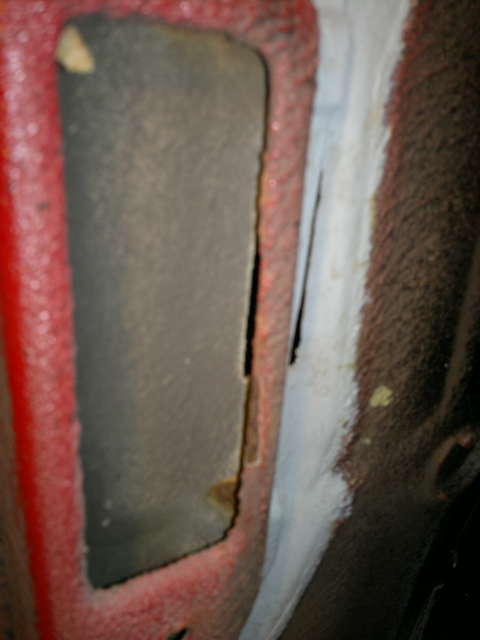

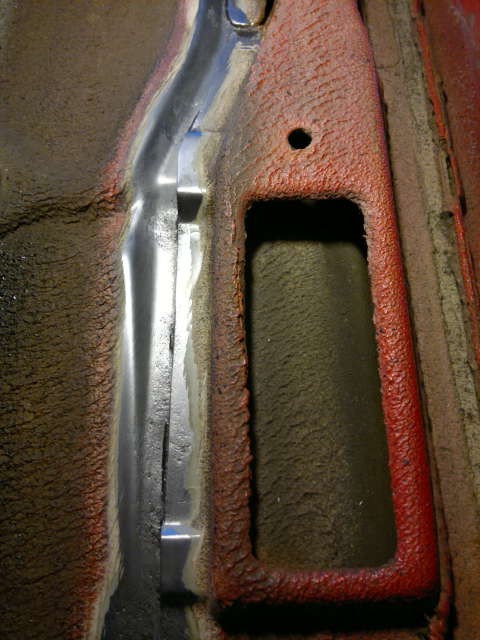

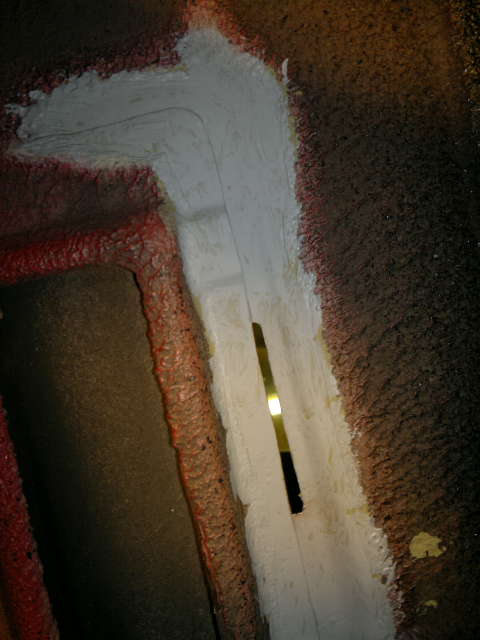

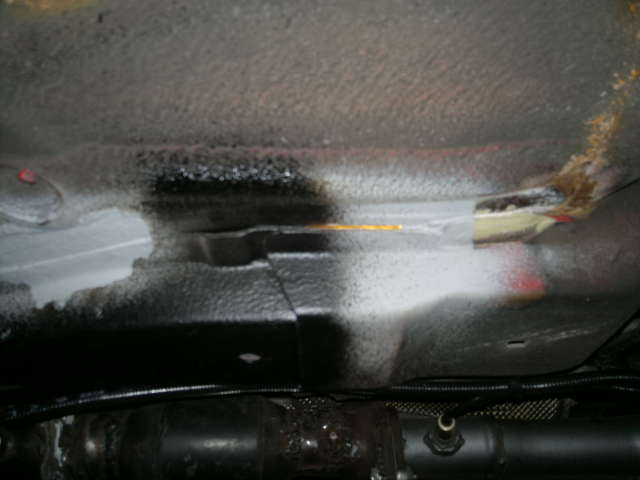

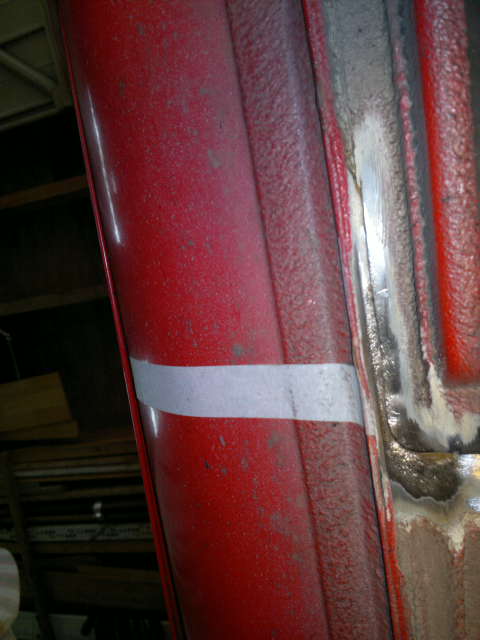

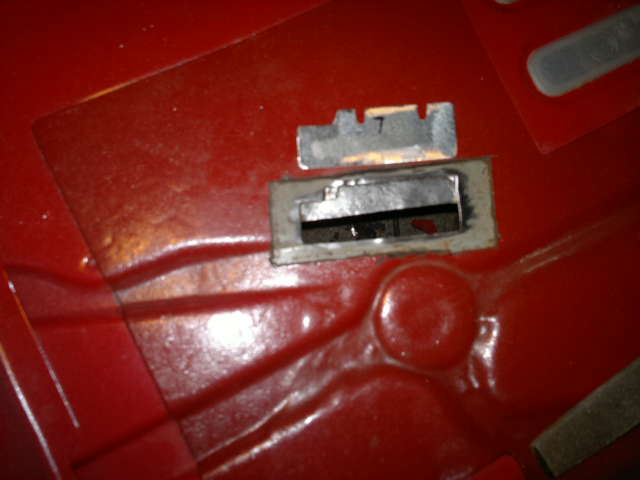

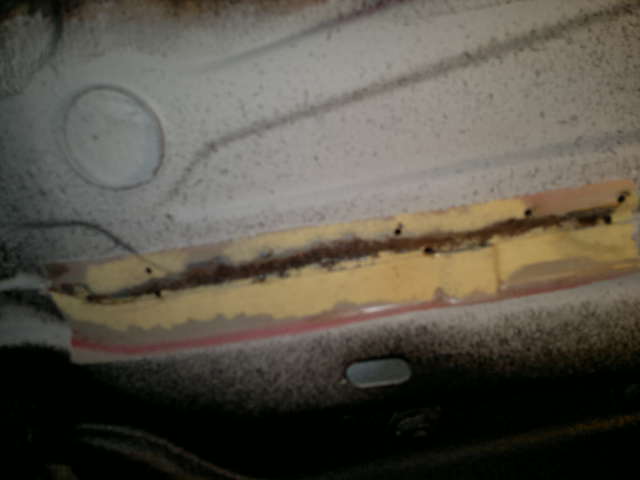

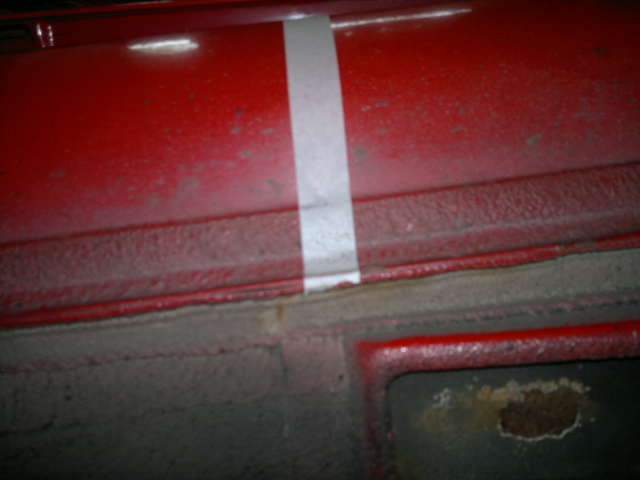

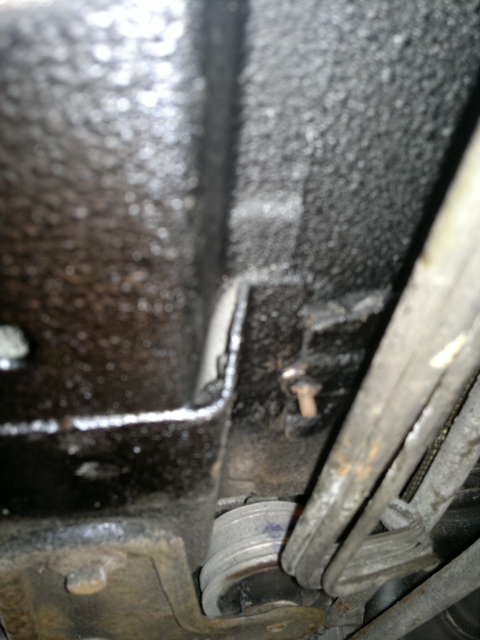

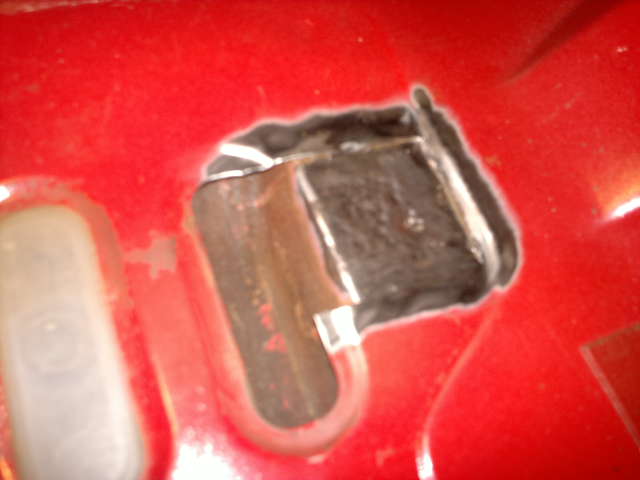

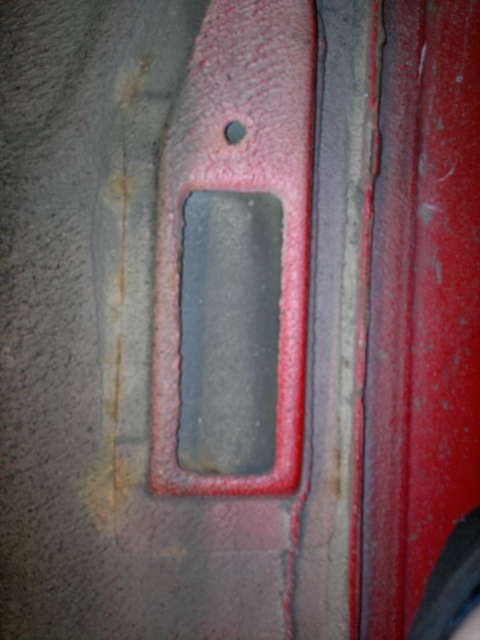

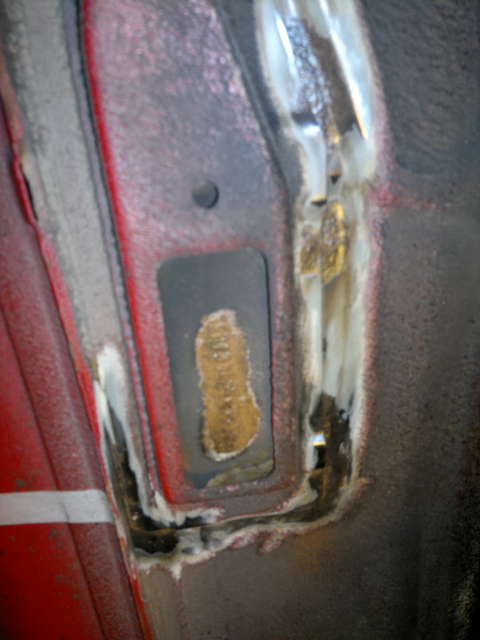

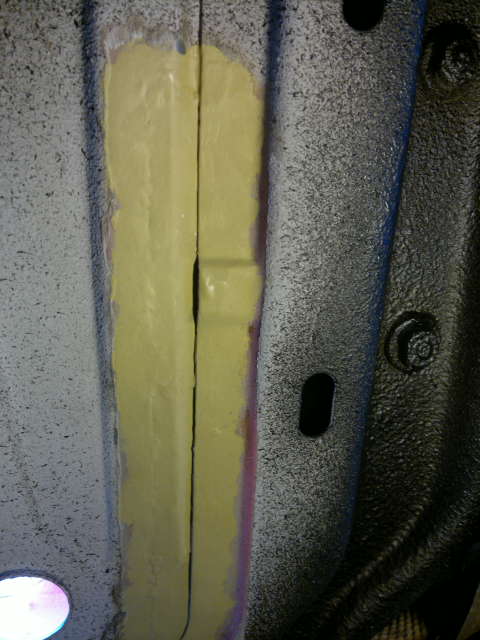

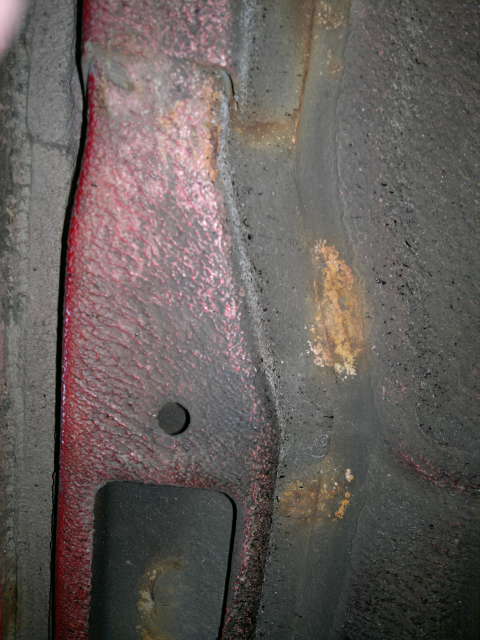

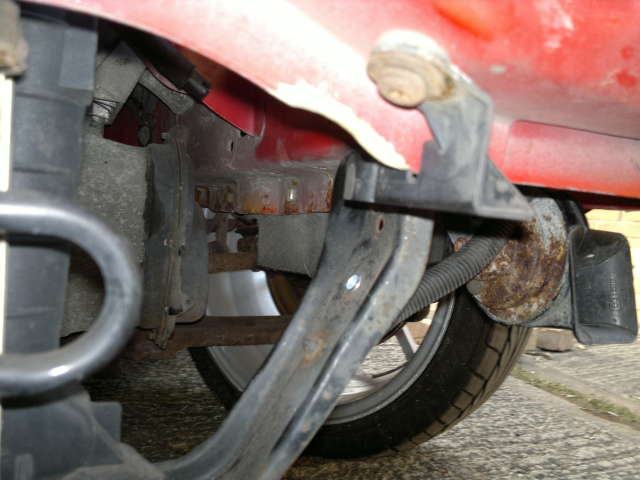

View from under corroded strengthener. The seam seen from inside the car is directly above the screw thread shown on this photo. The screw thread is for the forward fuel and brake pipe clips which I've removed for clarity.

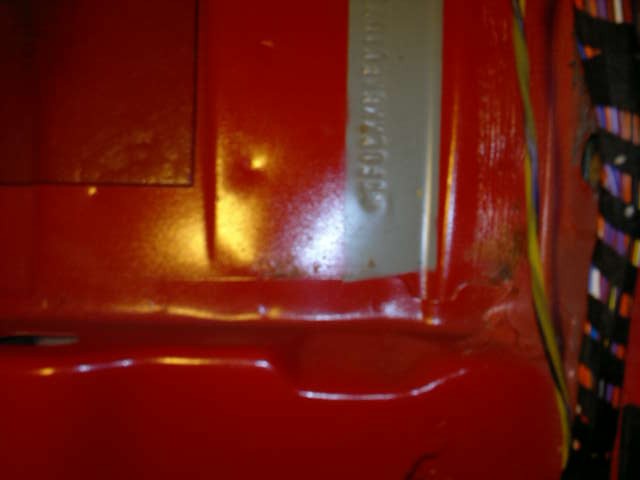

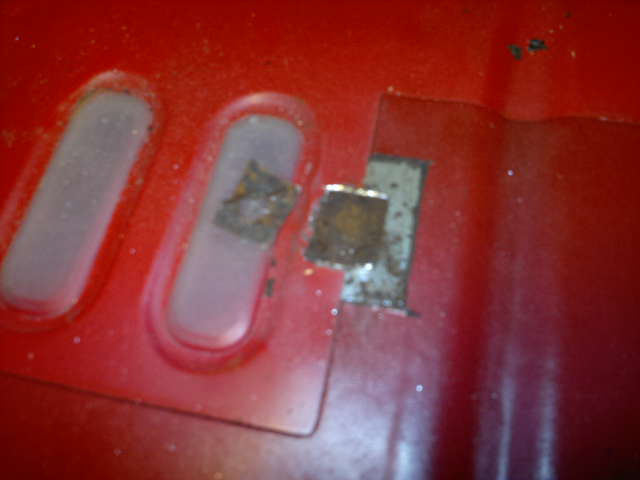

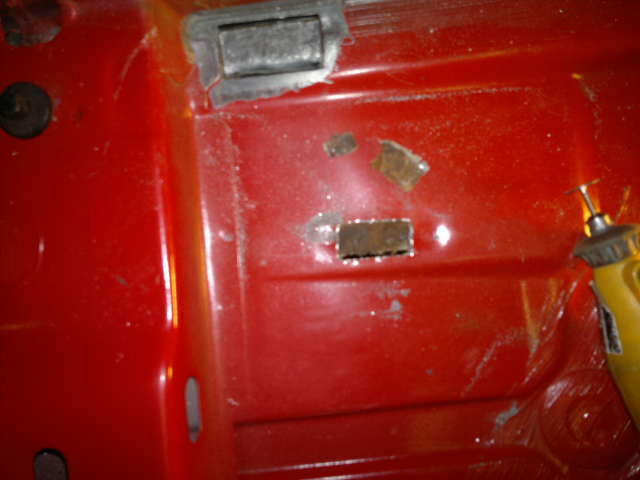

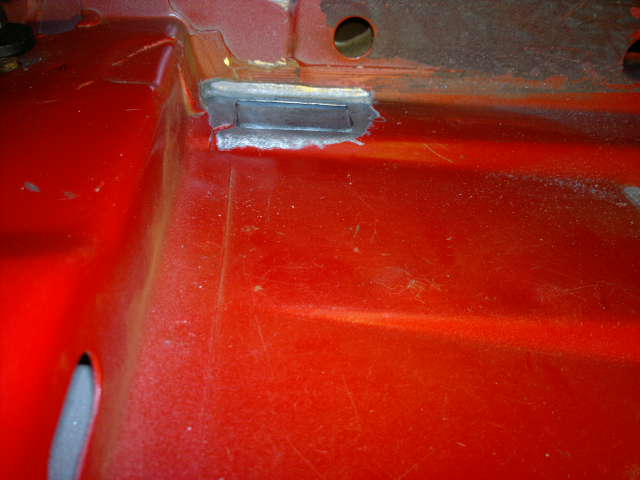

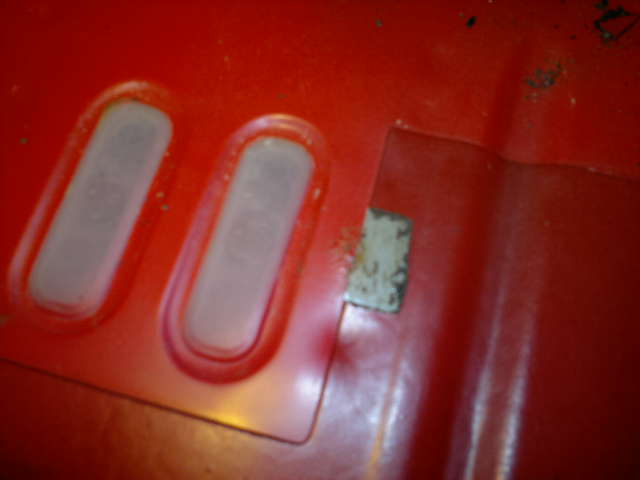

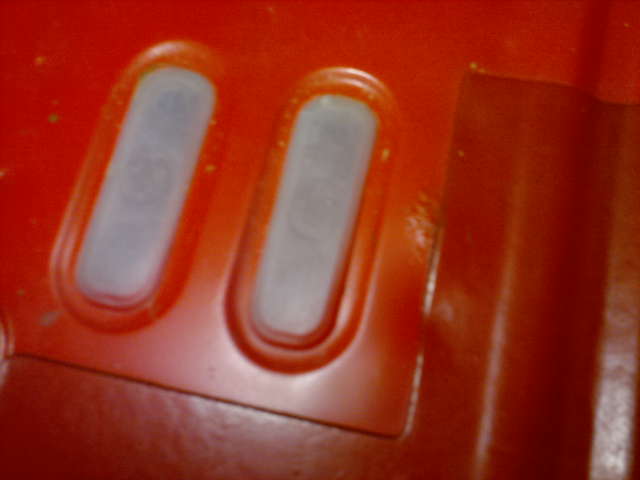

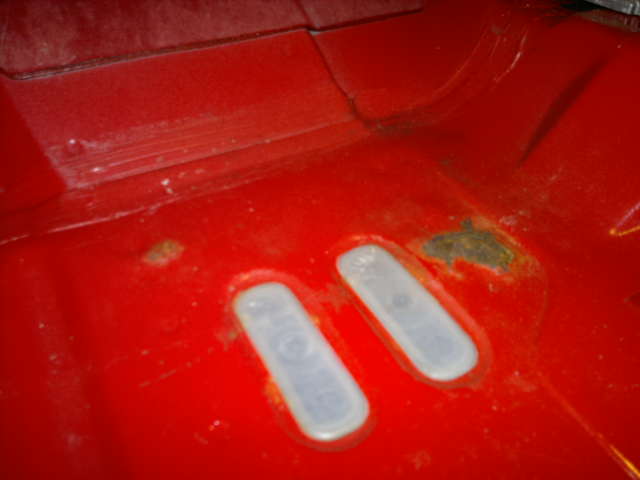

Next up was the very small area to the left of the patch I've just cut out. This just looked like a bubble of rust between another strengthener and the floor. Anyway I cut it out and then had a look underneath.

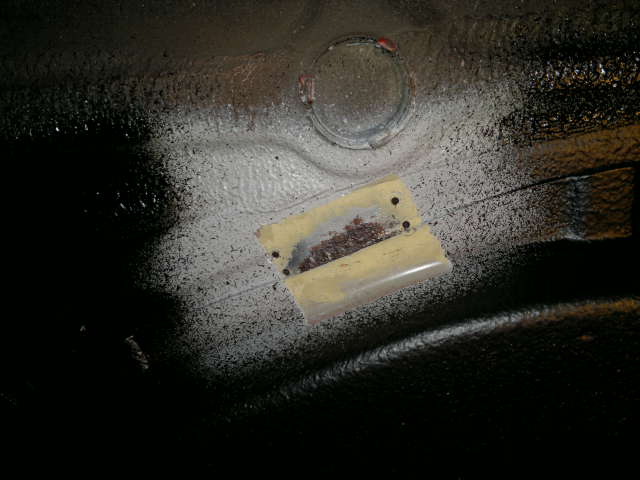

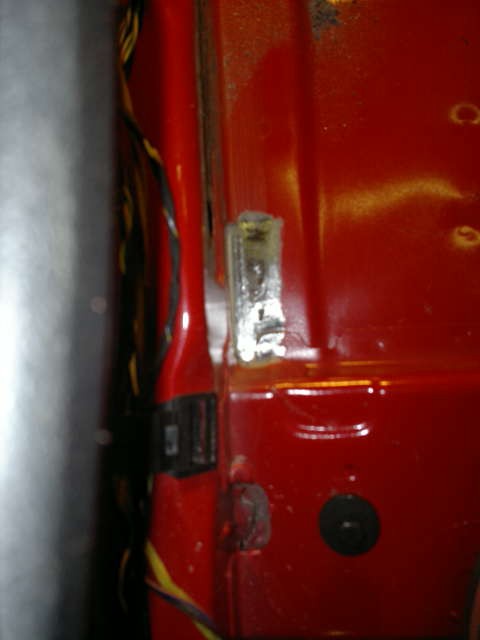

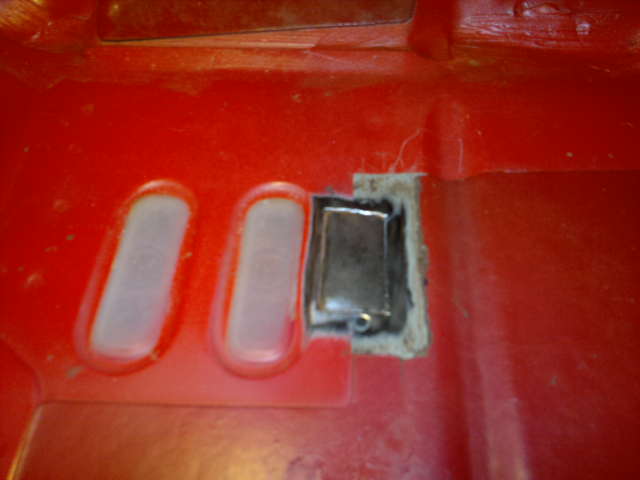

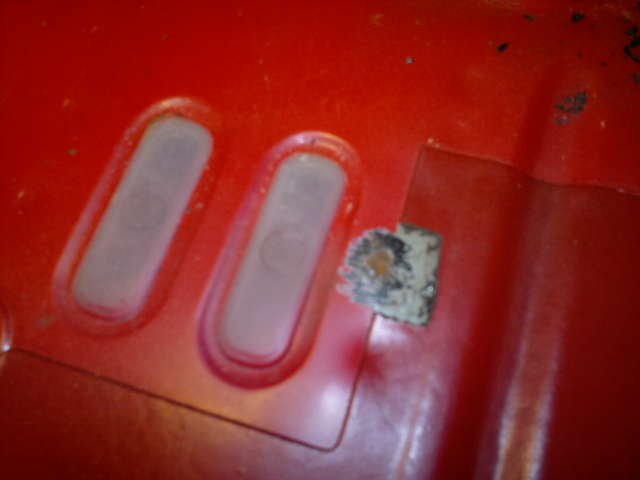

This was what I found underneath. The hole through the floor that I'd just cut is just visible at the side of the strengthener. It looks like I'll have to extend the patch into the joint between the floorpan and front bulkhead.

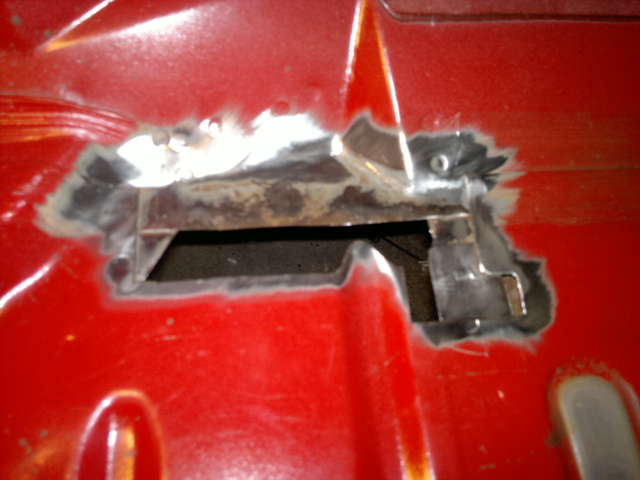

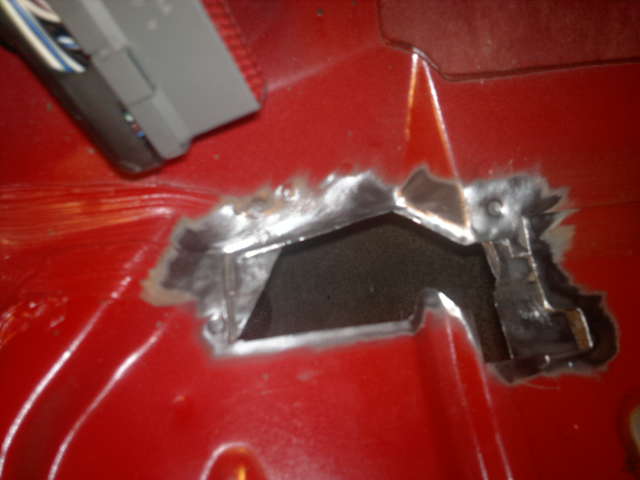

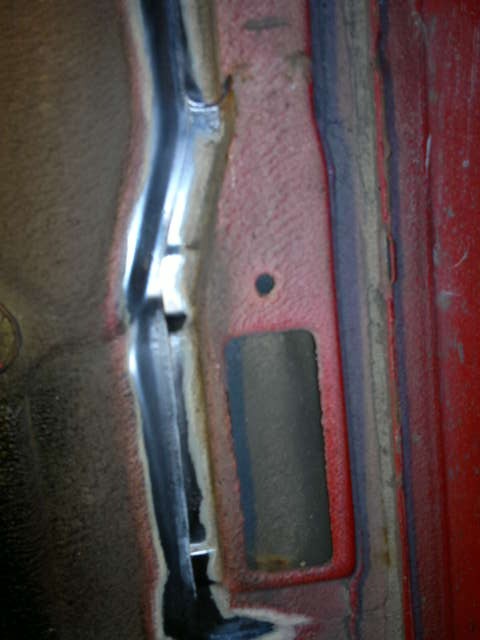

So first off I cut out the floorpan that had any rot in it.

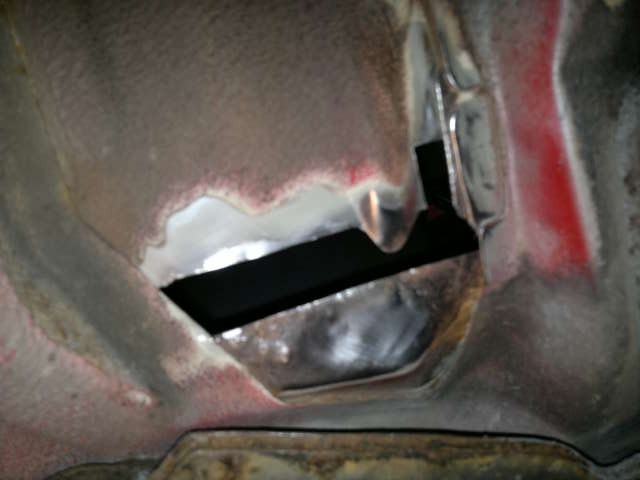

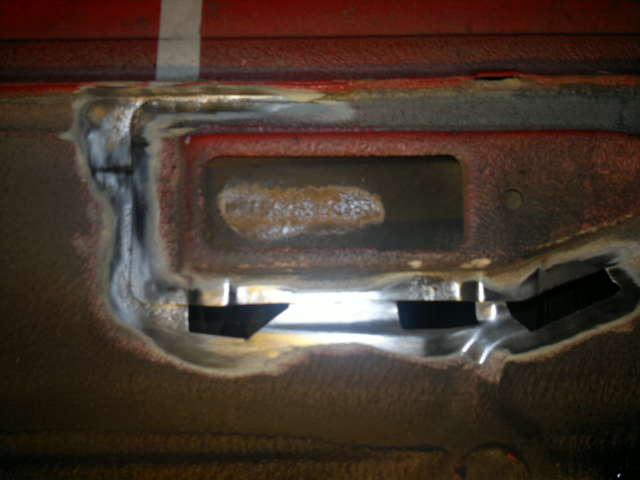

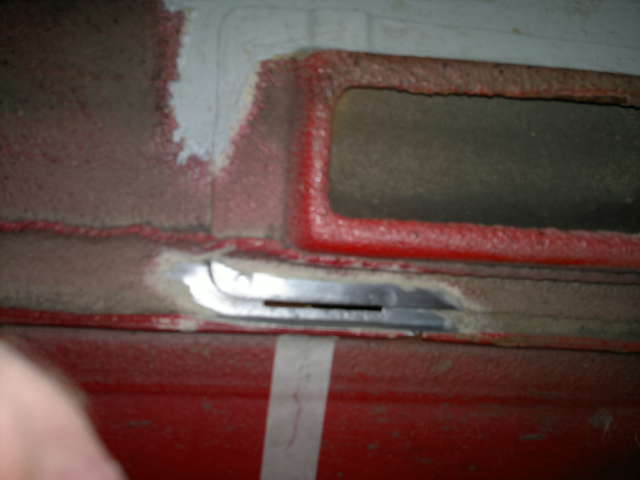

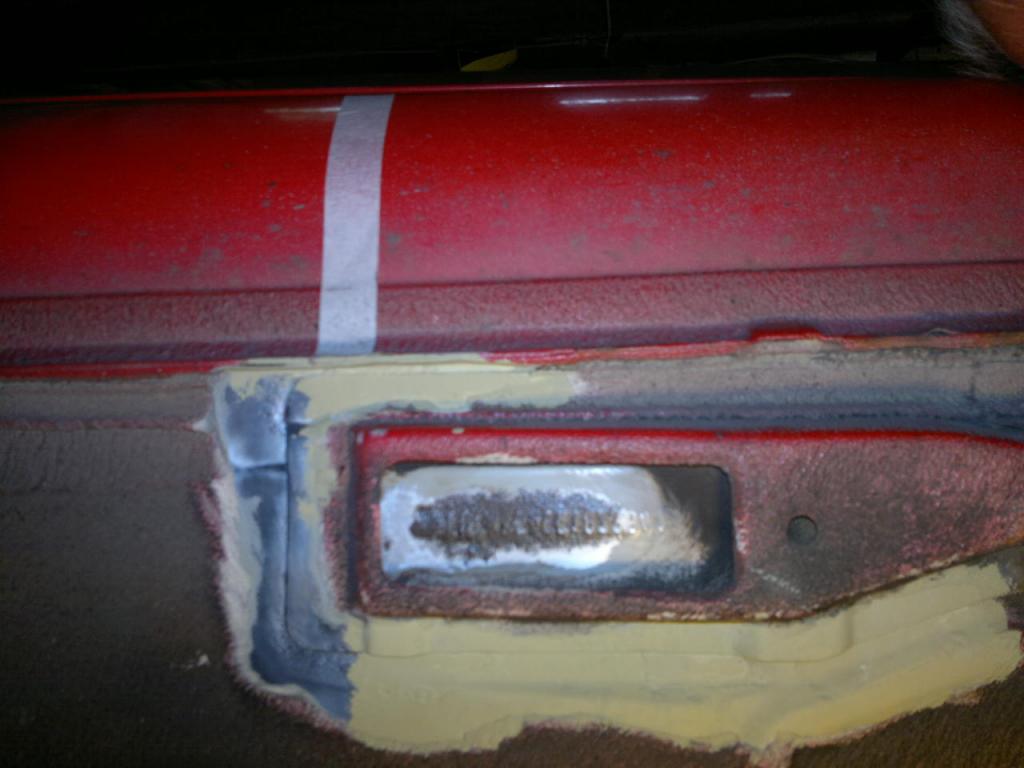

View from below showing rot cut out and the rot to be cut out of the bulkhead.


Then I cut out the bulkhead that had rot in it

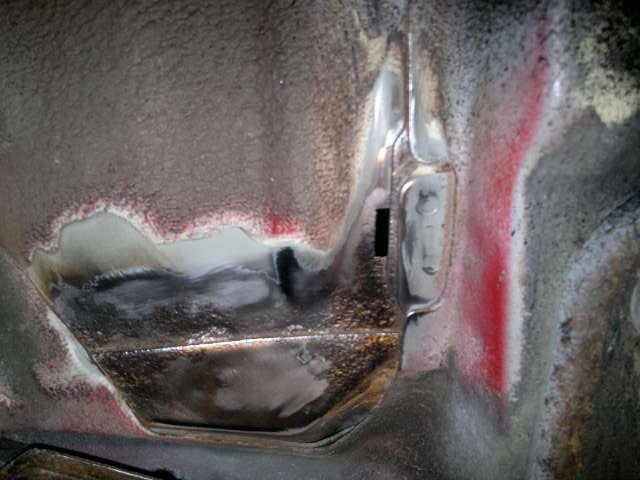

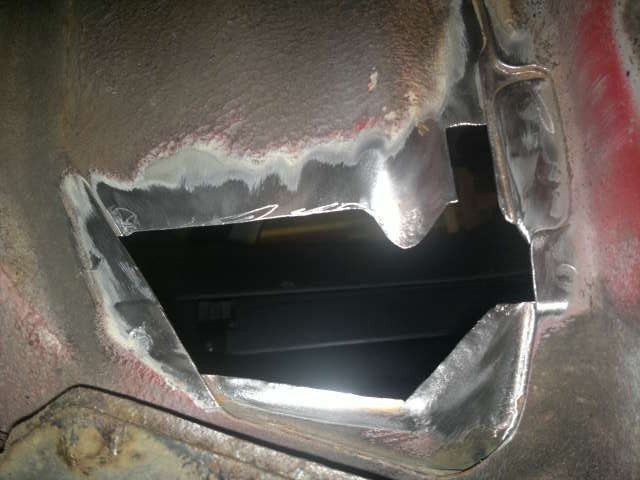

View from below now ready for welding.

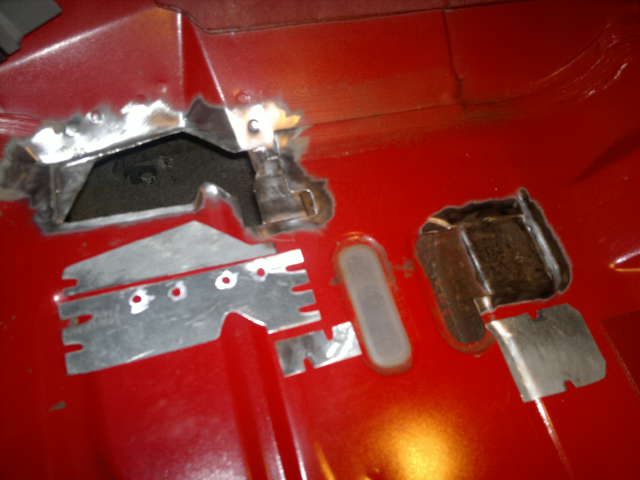

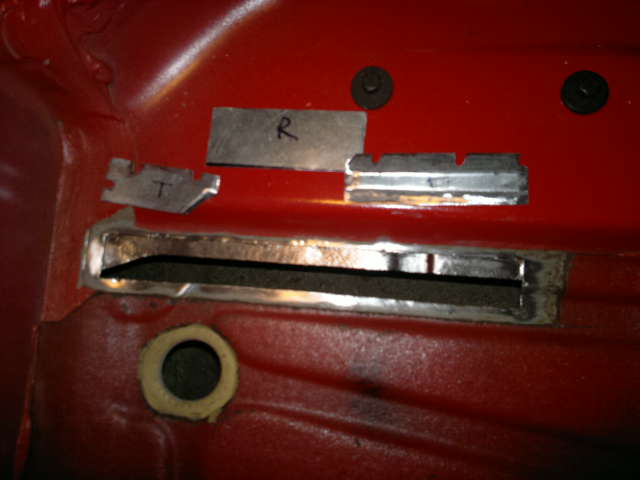

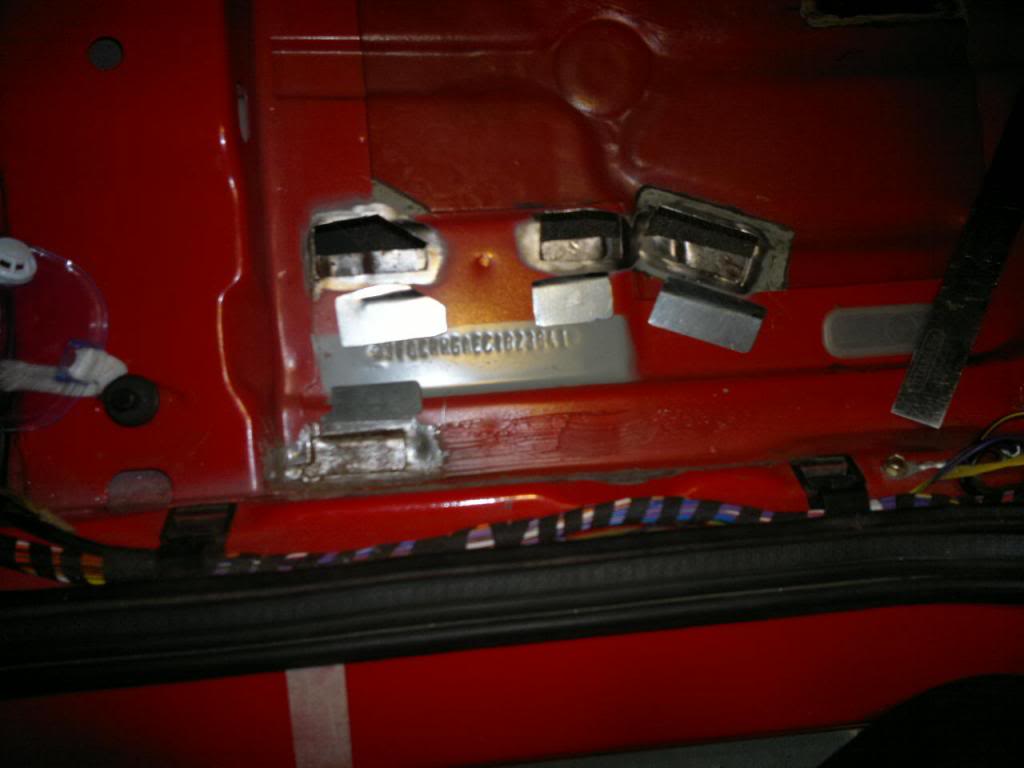

Patches cut out and ready to go (the slots and holes are for plug welding)
Last edited by tuonokid on Wed May 16, 2018 11:37 pm, edited 22 times in total.
0 x
2001 ColOrado red Puma 1.7, work in progress.
Westfield SEIW 1800 Zetec.
Building Westfield SEI 2.0 Zetec Blacktop on TBs.
Fiesta Style 1.25
Aprilia Tuono Factory.
1975 Yamaha TY80
Now working on my sons Anglia 105e

My Project Link - http://www.projectpuma.com/viewtopic.php?f=64&t=23509" onclick="window.open(this.href);return false;

User avatar
tuonokid
Project Elder
Project Elder
Posts: 3760
Joined: Fri Nov 23, 2012 8:41 pm
Model: 1.7
Location: Huddersfield

My Puma 1.7, more than a year on (A works in progress)

Post by tuonokid » Tue Mar 04, 2014 11:25 pm

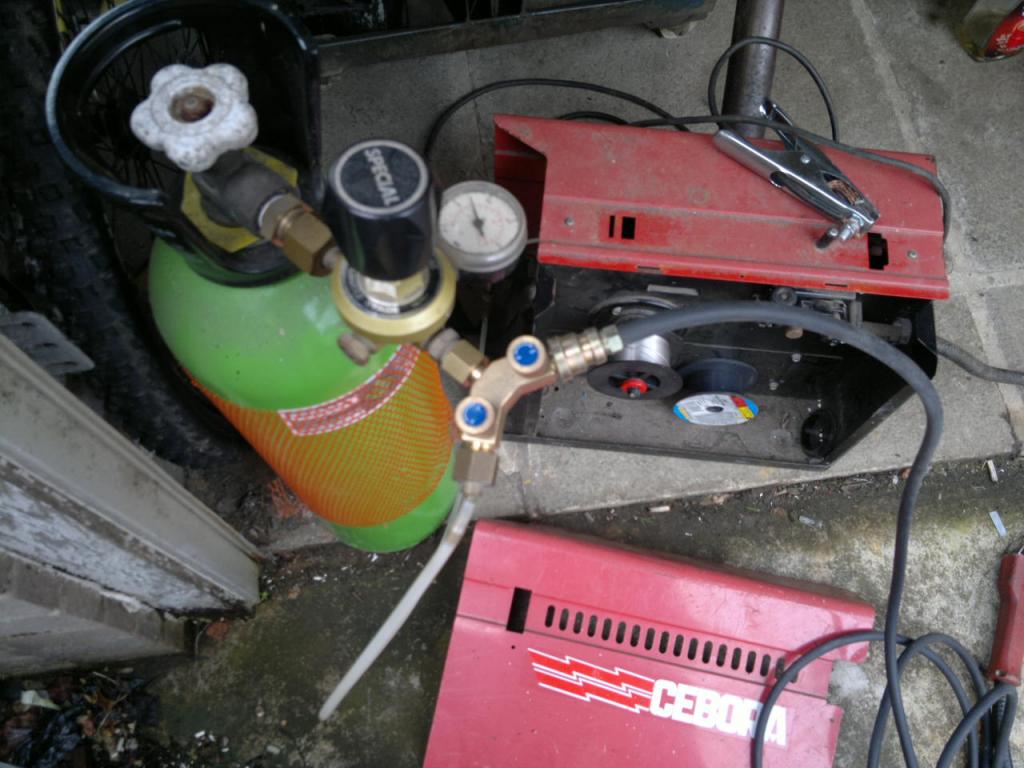

I've been wanting to start welding the floorpans but I haven't managed to get the car out of the garage and it's too narrow to open the doors wide enough for access so I've been just tidying things up over the last few days.
I was going to buy a K&N induction kit but I went down the cheapo route with a £7.99 cotton cone filter off Ebay. I didn't want to leave the MAF unsupported as vibration could detach the springs inside it so it needed a proper rubber mount. Anyway one of the existing airbox mounts is just in the right place so using the following components ;


I created this ;

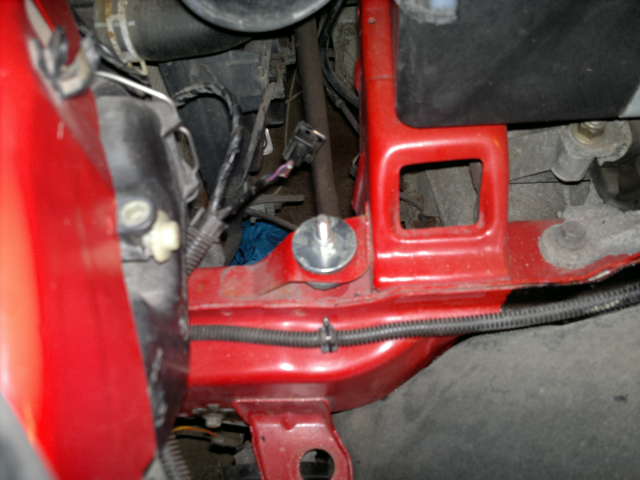

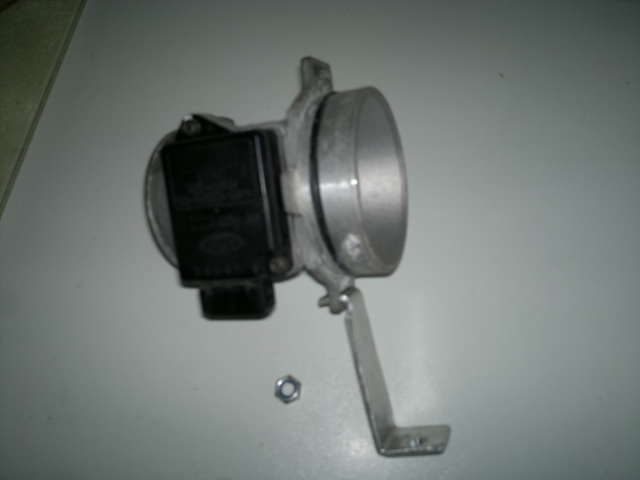

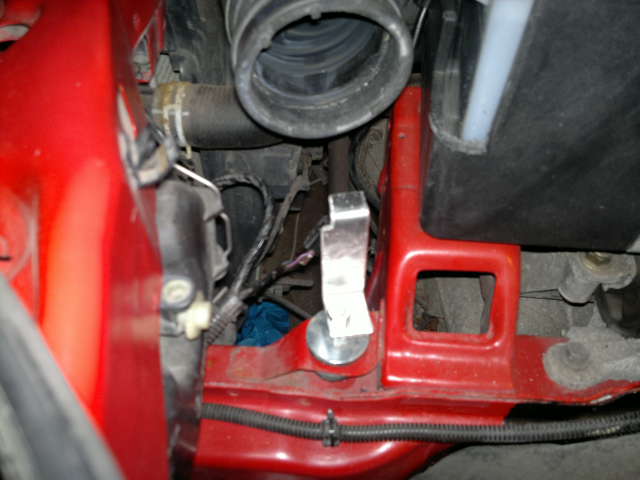

And then added the support bracket

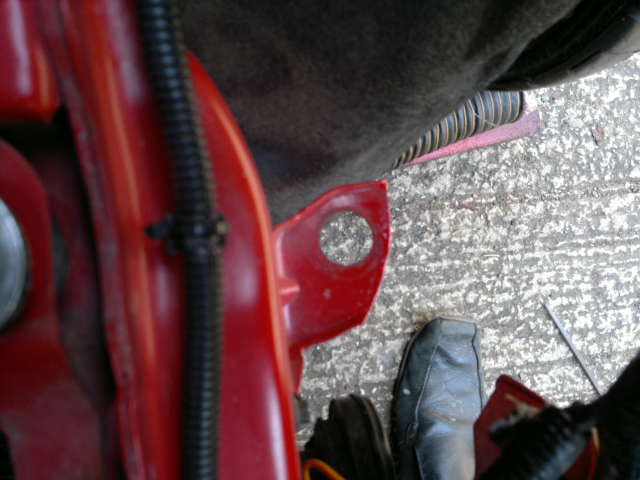

The bracket slots into the mounting that fixes the MAF to the airbox as this

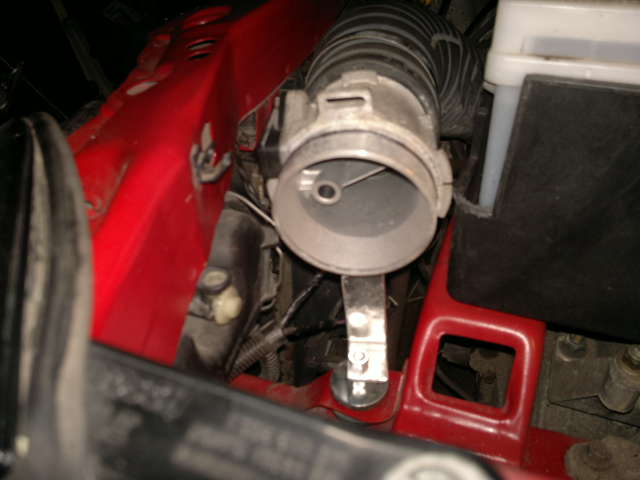

MAF fixed in place.

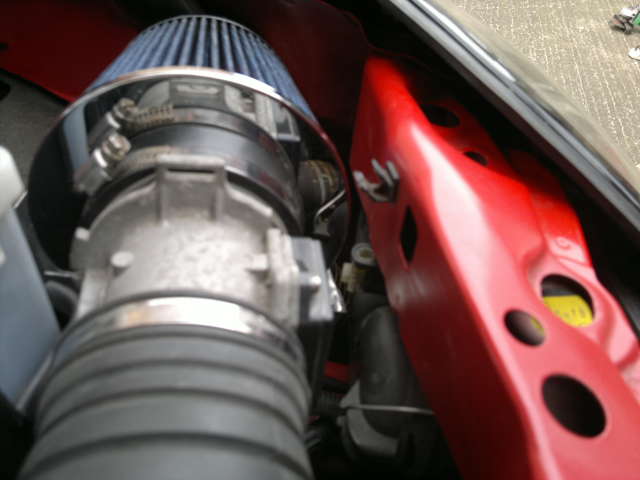

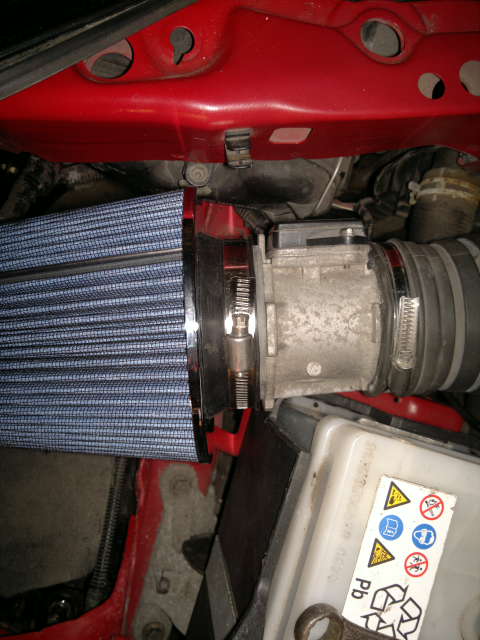

Filter fixed in place showing clearance to other things


The filter was actually 89mm ID and the MAF is about 85mm OD so I just made the difference up with some cut up rubber inner tube wound around the MAF flange. Now I just need to seal up the wheel arch to stop the filter getting wet and put a cold air feed to it.
Last edited by tuonokid on Wed May 16, 2018 11:52 pm, edited 14 times in total.
0 x
2001 ColOrado red Puma 1.7, work in progress.
Westfield SEIW 1800 Zetec.
Building Westfield SEI 2.0 Zetec Blacktop on TBs.
Fiesta Style 1.25
Aprilia Tuono Factory.
1975 Yamaha TY80
Now working on my sons Anglia 105e

My Project Link - http://www.projectpuma.com/viewtopic.php?f=64&t=23509" onclick="window.open(this.href);return false;

User avatar
tuonokid
Project Elder
Project Elder
Posts: 3760
Joined: Fri Nov 23, 2012 8:41 pm
Model: 1.7
Location: Huddersfield

My Puma 1.7, more than a year on (A works in progress)

Post by tuonokid » Thu Mar 06, 2014 2:51 am

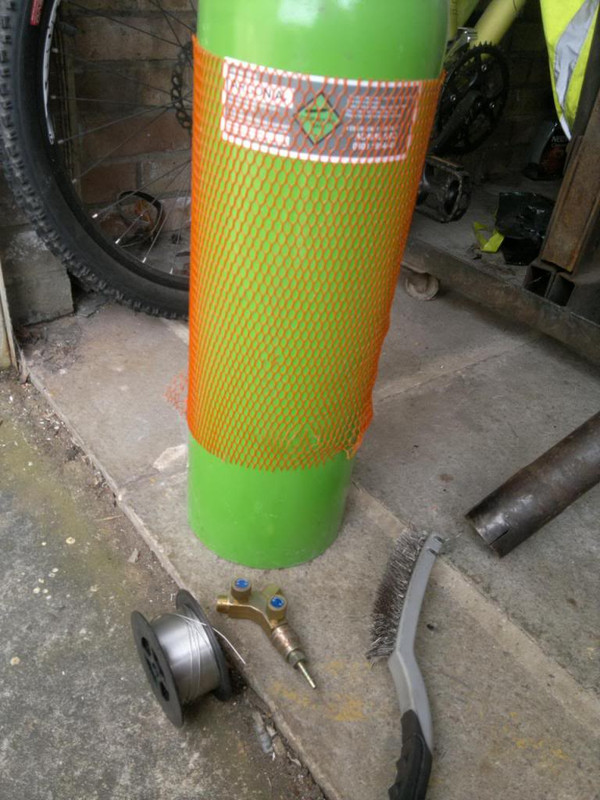

Still waiting for the weather to improve so I can start welding outside so just catching up on a few jobs.

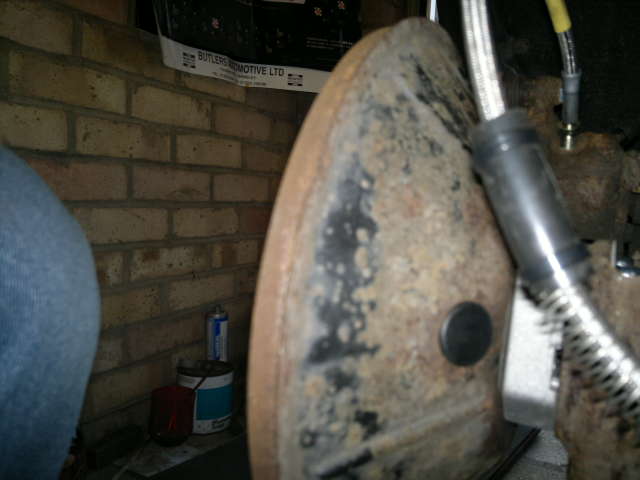

Put the rubber caps in place to protect the holes I'd drilled through the disc shields to check the rear disc abs sensor gaps

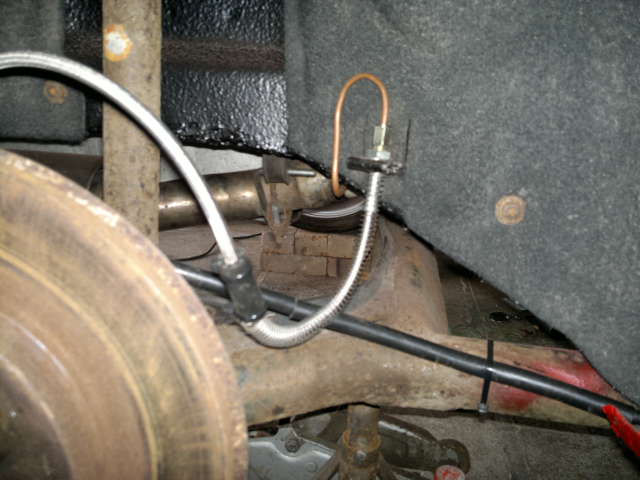

I used the spring protectors off the standard front Puma brake hoses to protect the rear Goodridge hoses.
Looking good but I may still take off the shockers at the back and check the full stroke to make sure that the hoses are ok

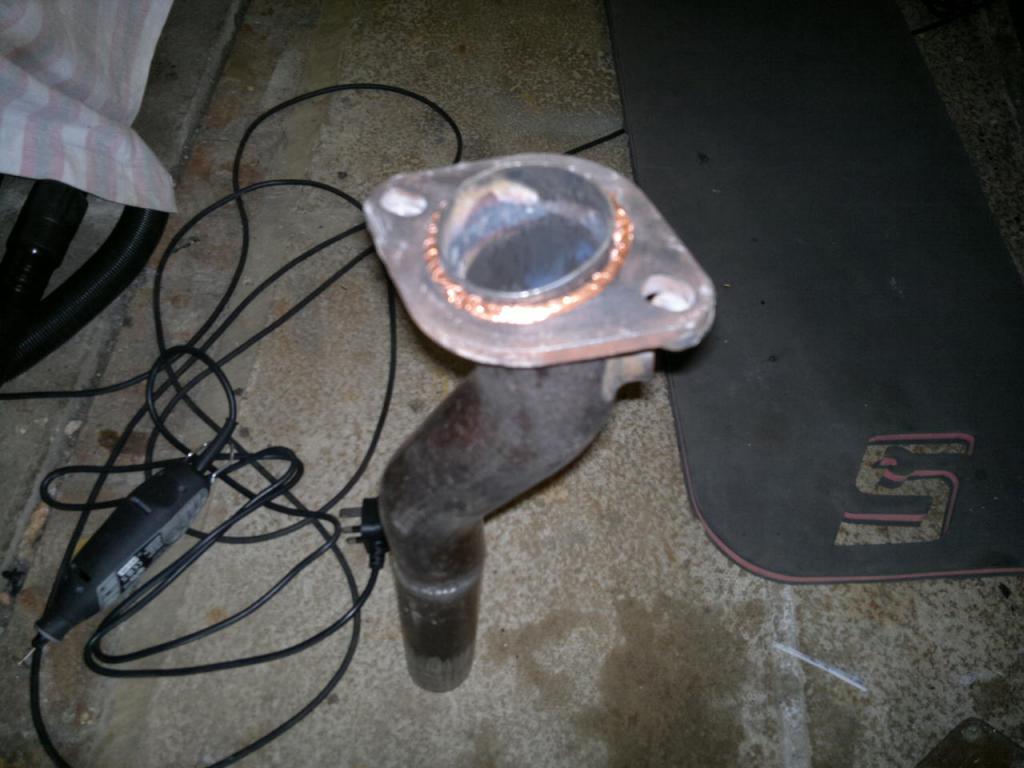

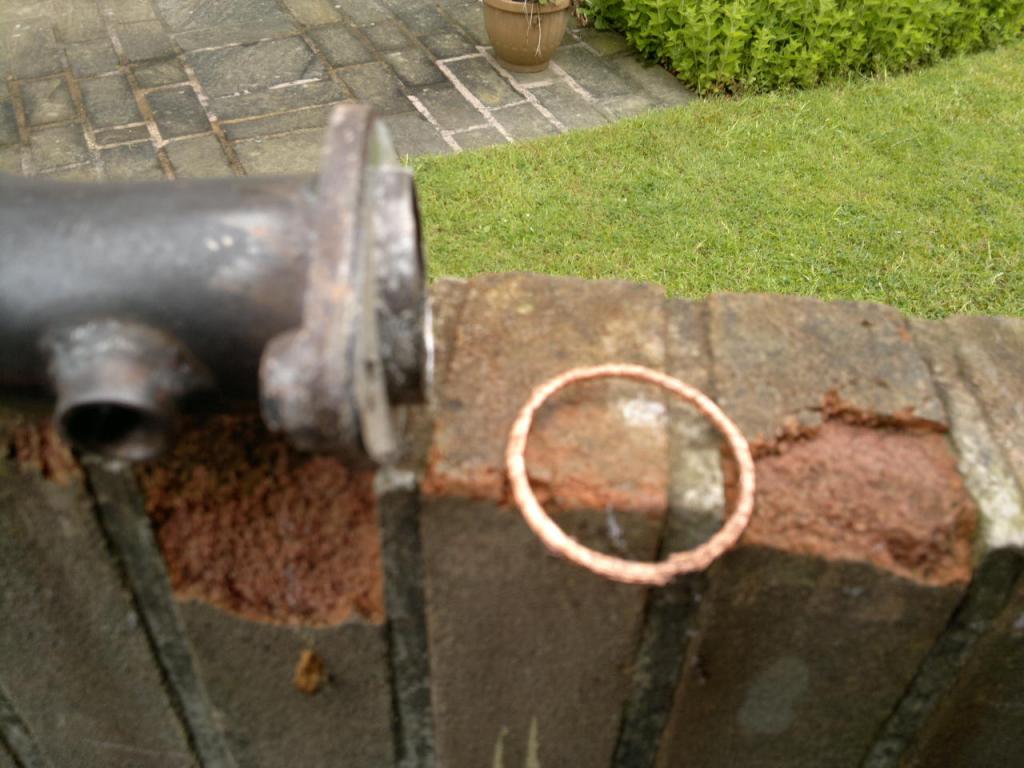

Finished off installing the sportcat after I'd checked it for gas tightness (it was full of pinholes so had to weld them up)


Then installed the lambdas after lengthening the cables.

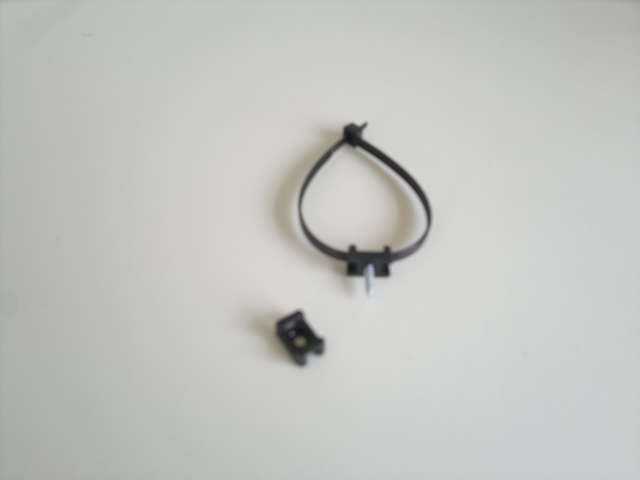

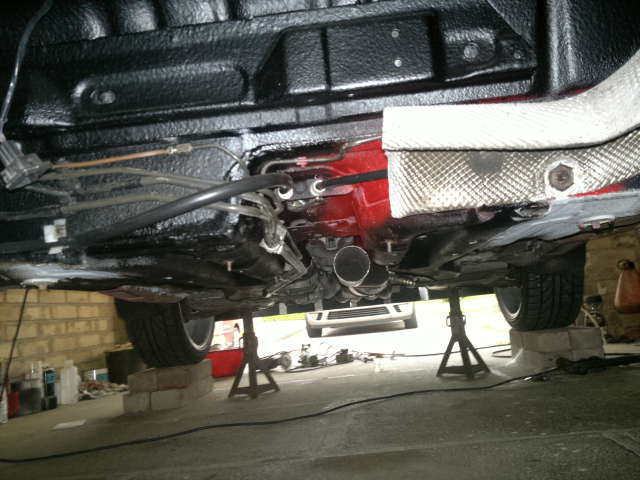

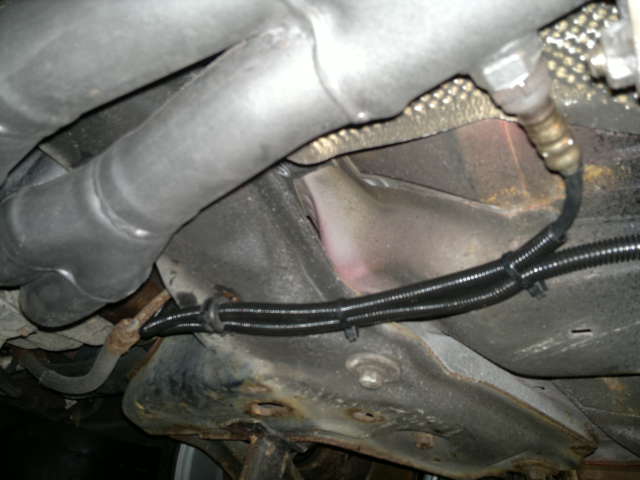

I attached the cables to the chassis rails using the clips below which take a cable tie so they are re-usable.

Last edited by tuonokid on Thu May 17, 2018 12:09 am, edited 14 times in total.
0 x
2001 ColOrado red Puma 1.7, work in progress.
Westfield SEIW 1800 Zetec.
Building Westfield SEI 2.0 Zetec Blacktop on TBs.
Fiesta Style 1.25
Aprilia Tuono Factory.
1975 Yamaha TY80
Now working on my sons Anglia 105e

My Project Link - http://www.projectpuma.com/viewtopic.php?f=64&t=23509" onclick="window.open(this.href);return false;

User avatar
tuonokid
Project Elder
Project Elder
Posts: 3760
Joined: Fri Nov 23, 2012 8:41 pm
Model: 1.7
Location: Huddersfield

My Puma 1.7, more than a year on (A works in progress)

Post by tuonokid » Wed Mar 12, 2014 9:26 pm

Back onto the floorpans.


I'd already cut out the patches ready for letting in.

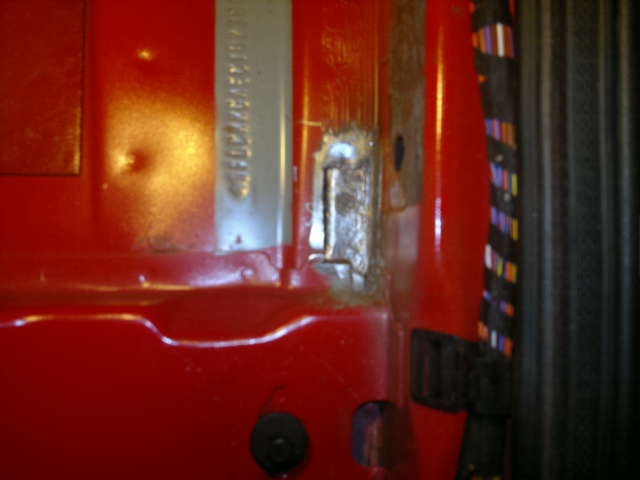

The 1st patch was the bulkhead end.

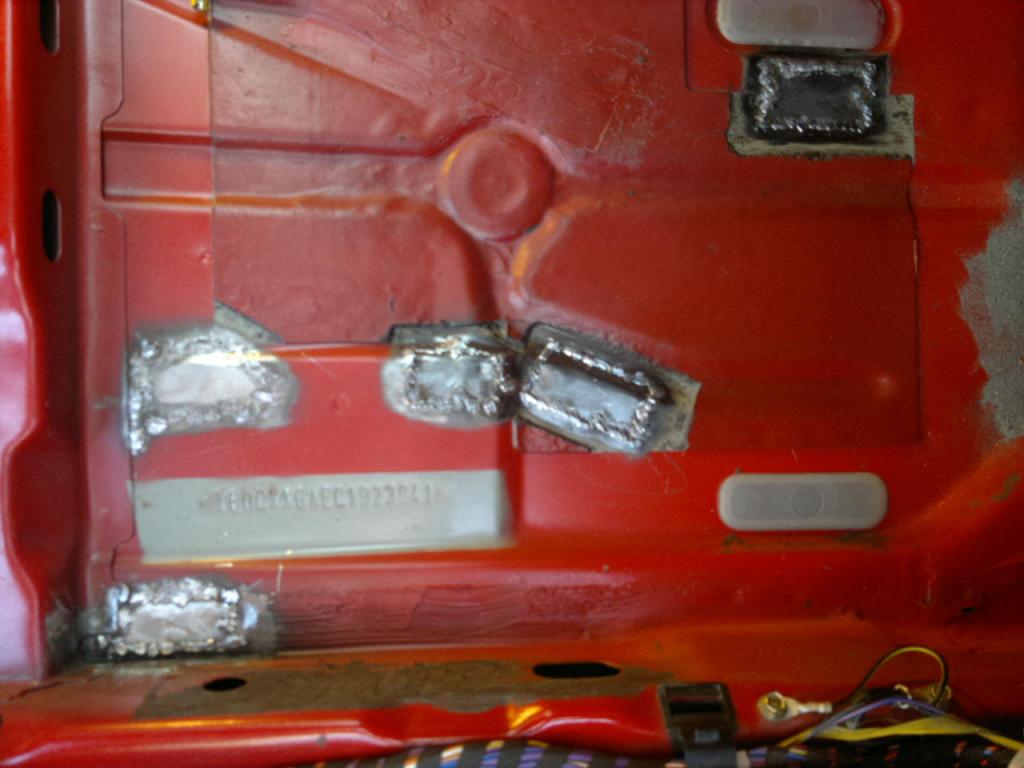

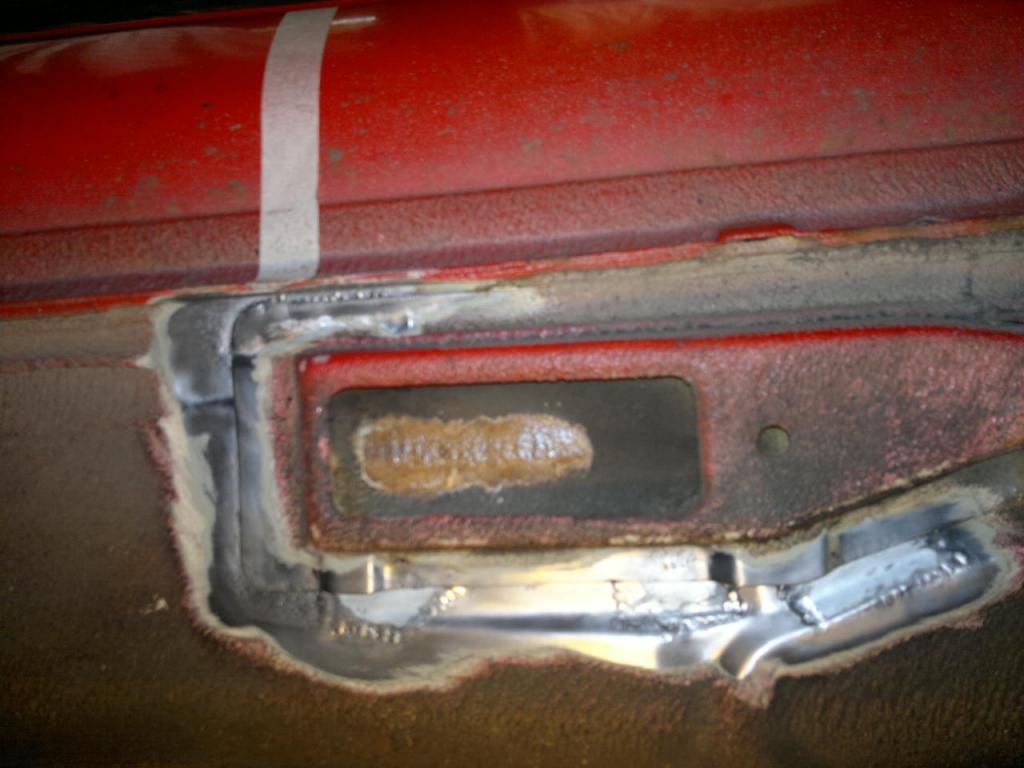

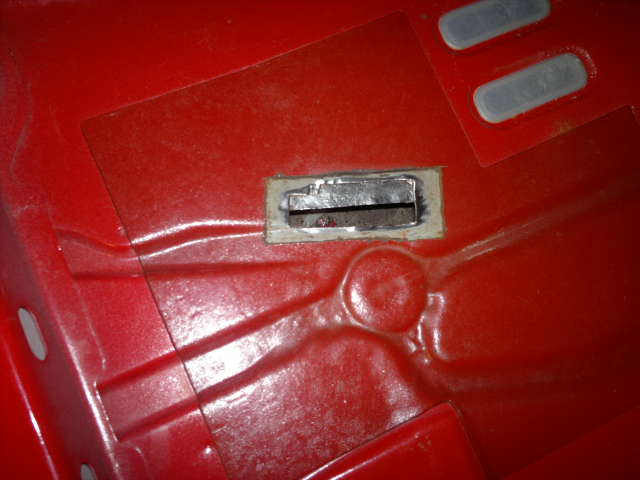

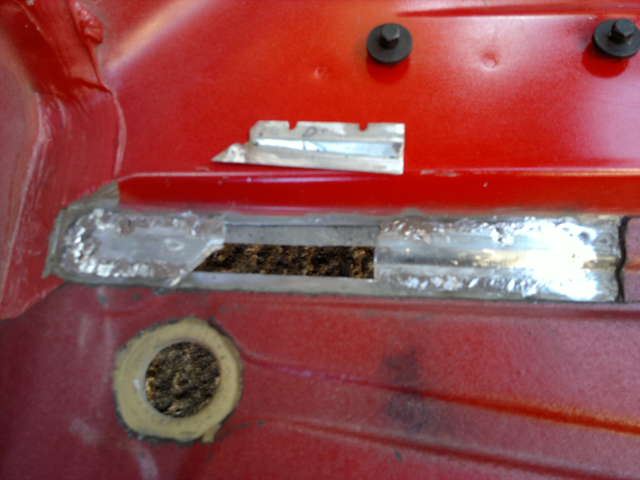

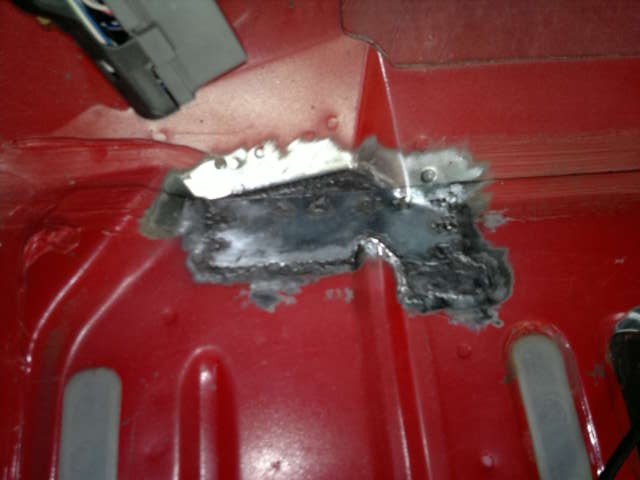

The 2nd and 3rd patches were on the floorpan. This is the view after welding and before cleaning up.

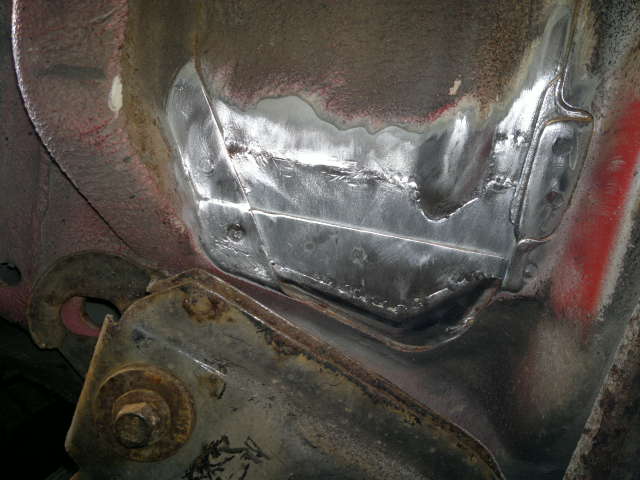

This was the view from underneath before tidying up

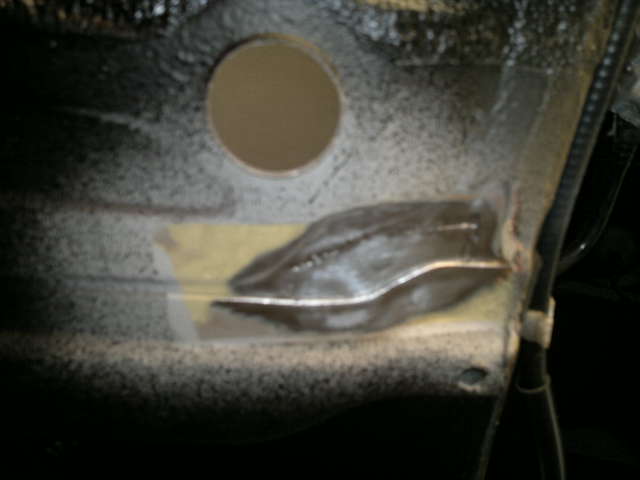

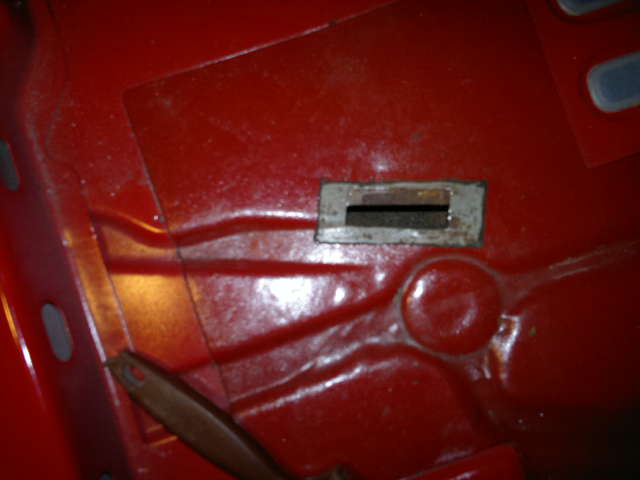

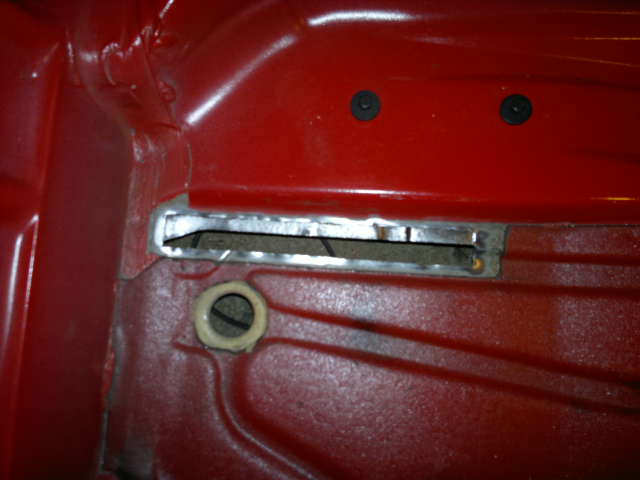

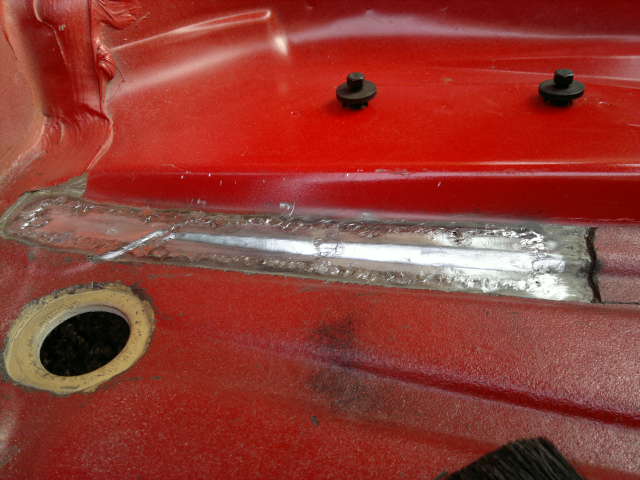

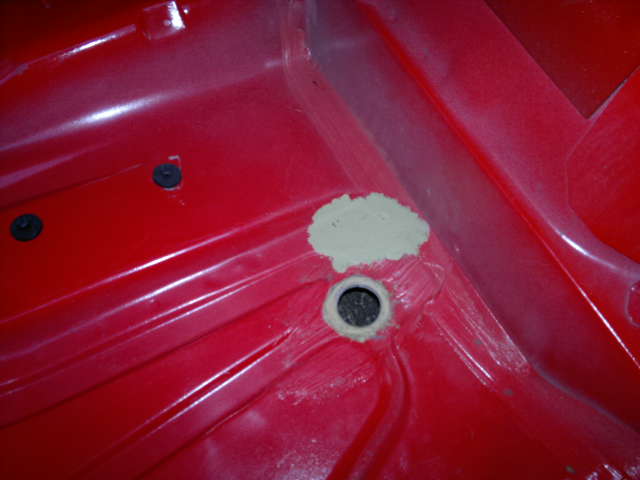

This was the patch done on the rear floorpan

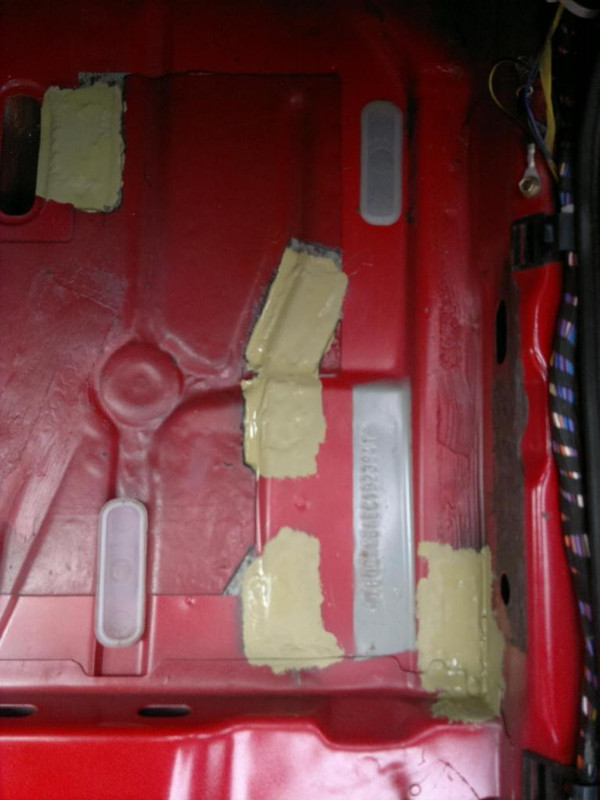

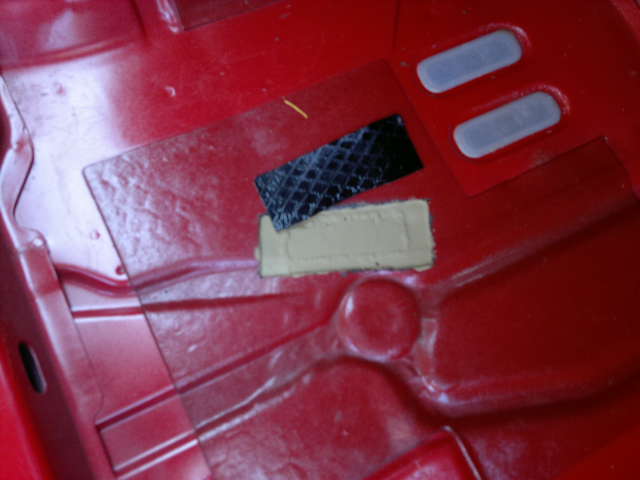

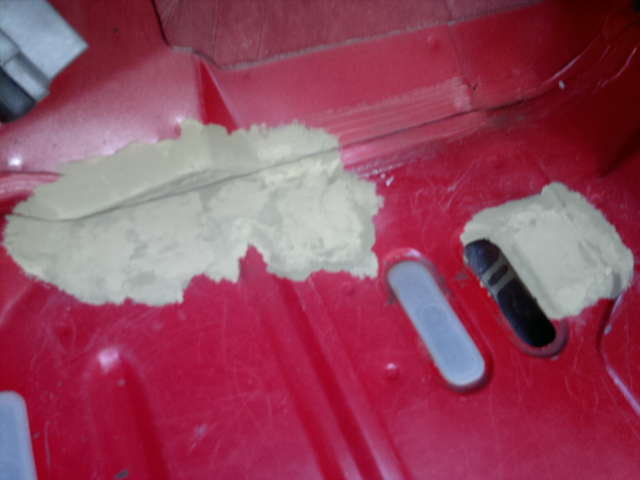

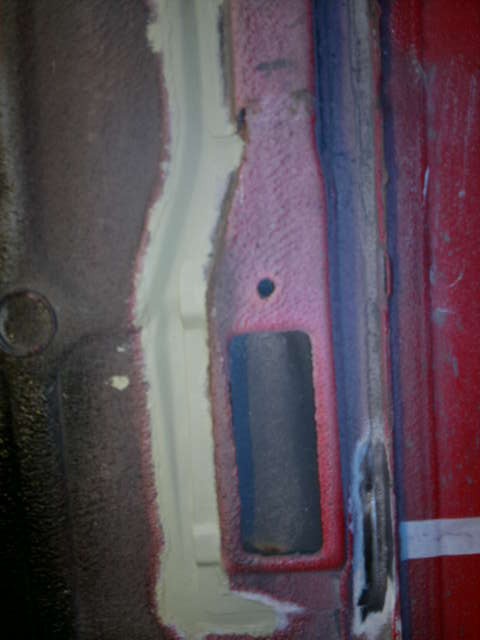

Patches after primer

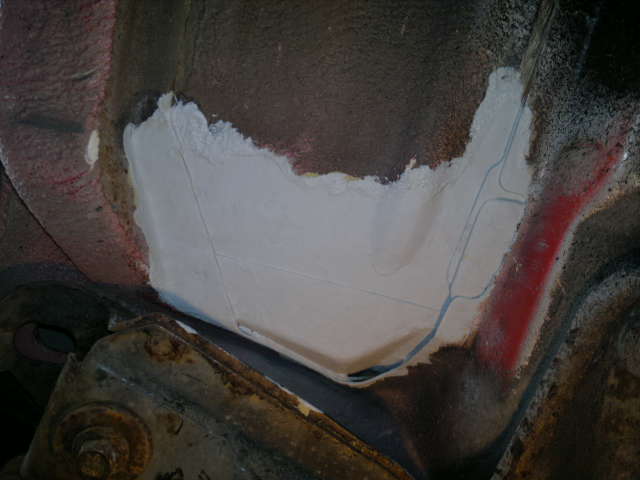

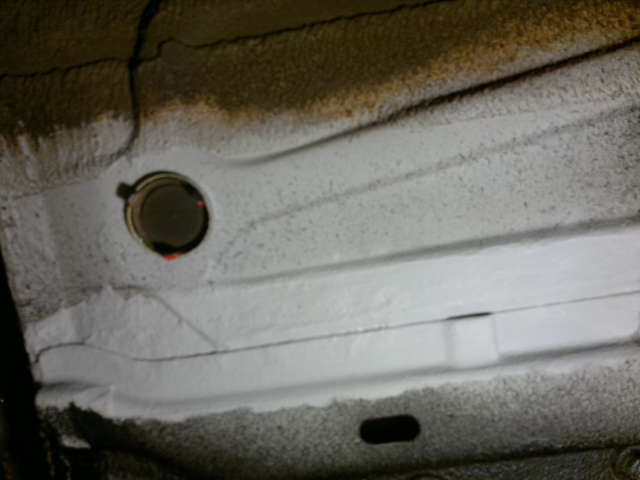

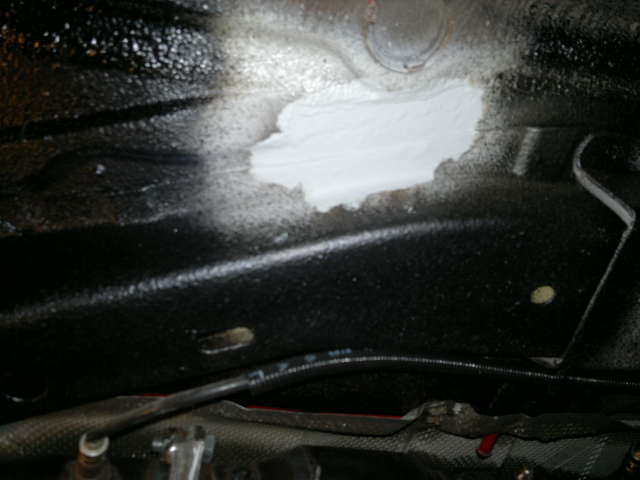

Patch stone chipped

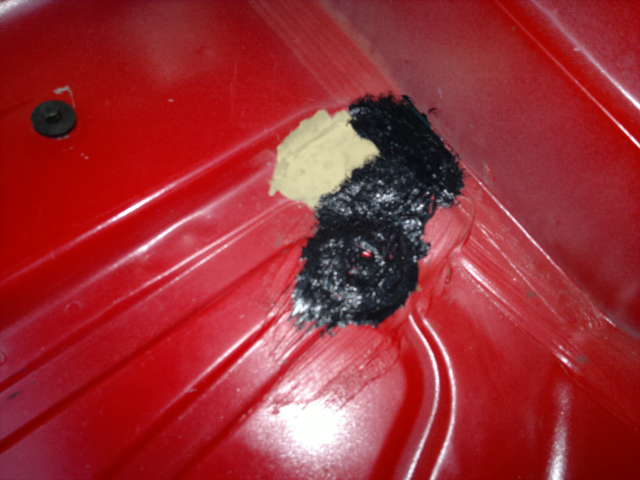

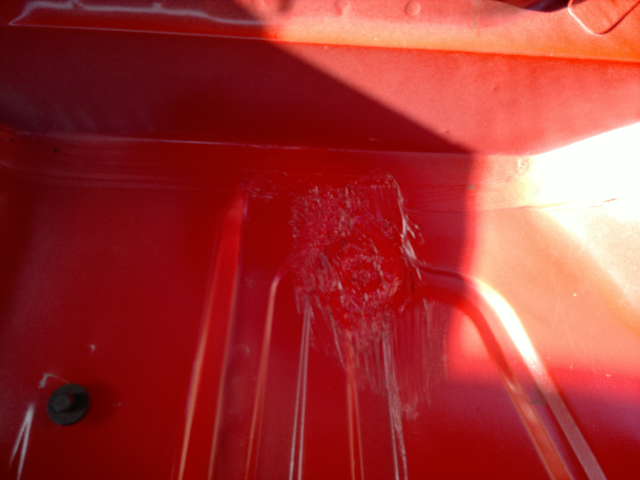

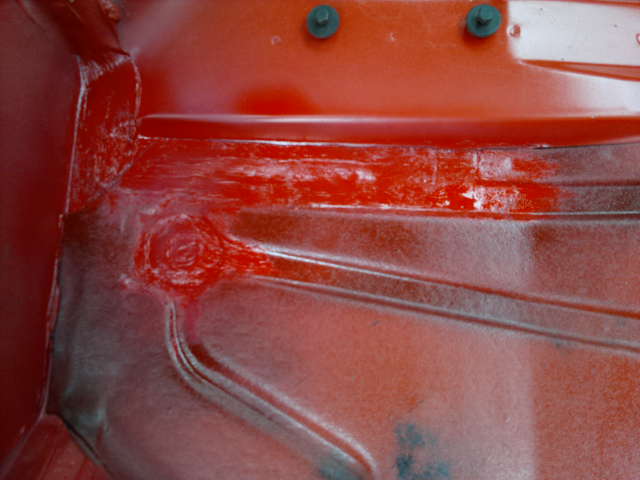

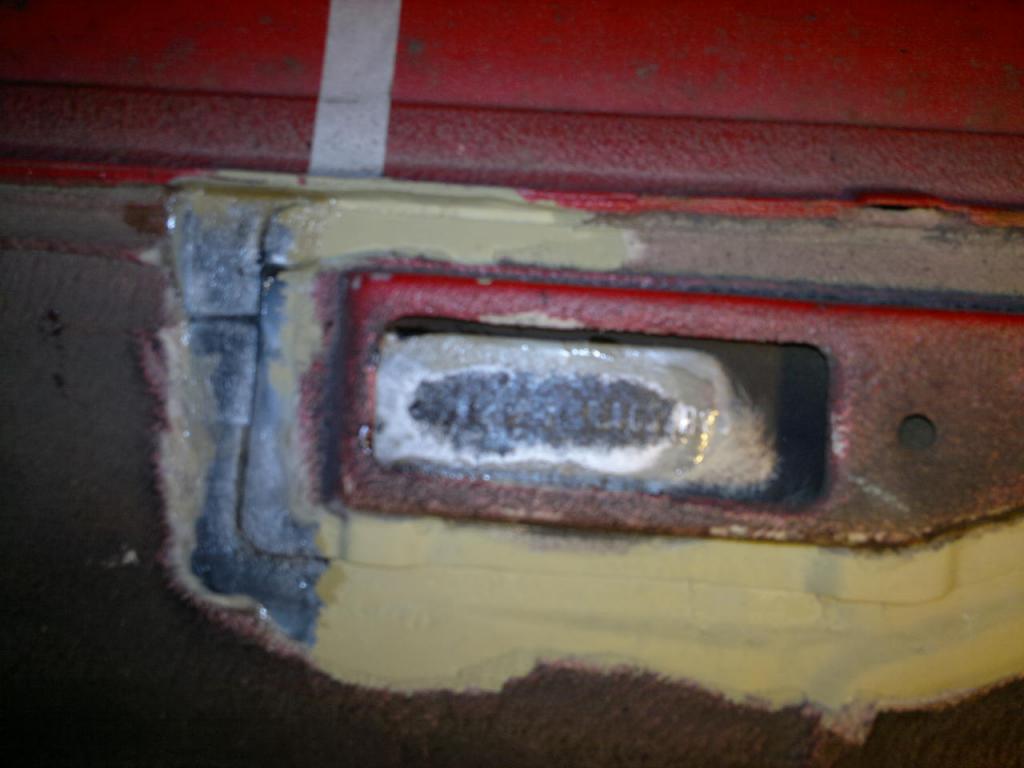

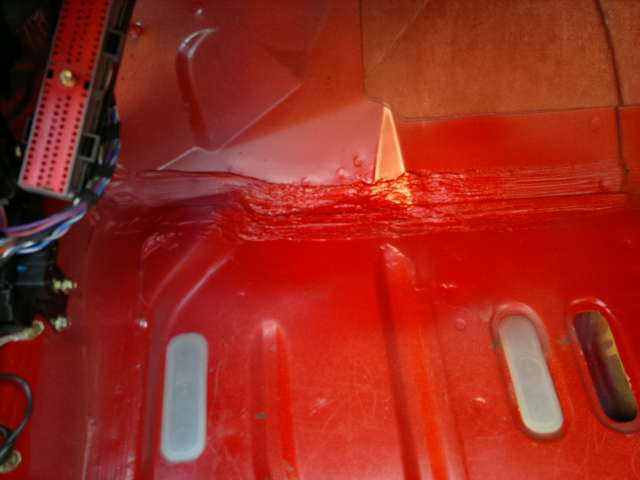

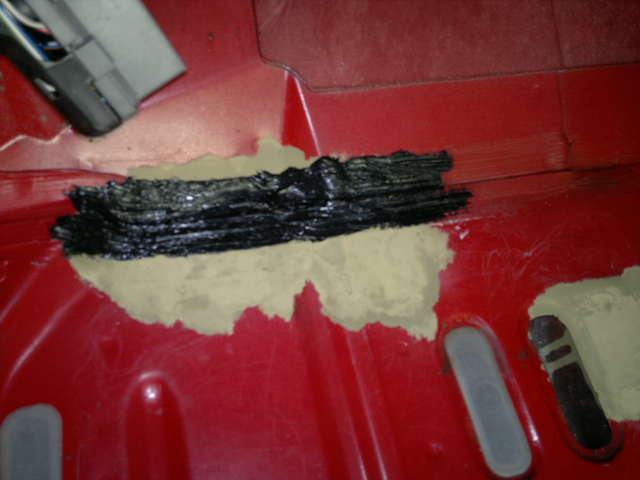

Primered and joint sealed ready for painting

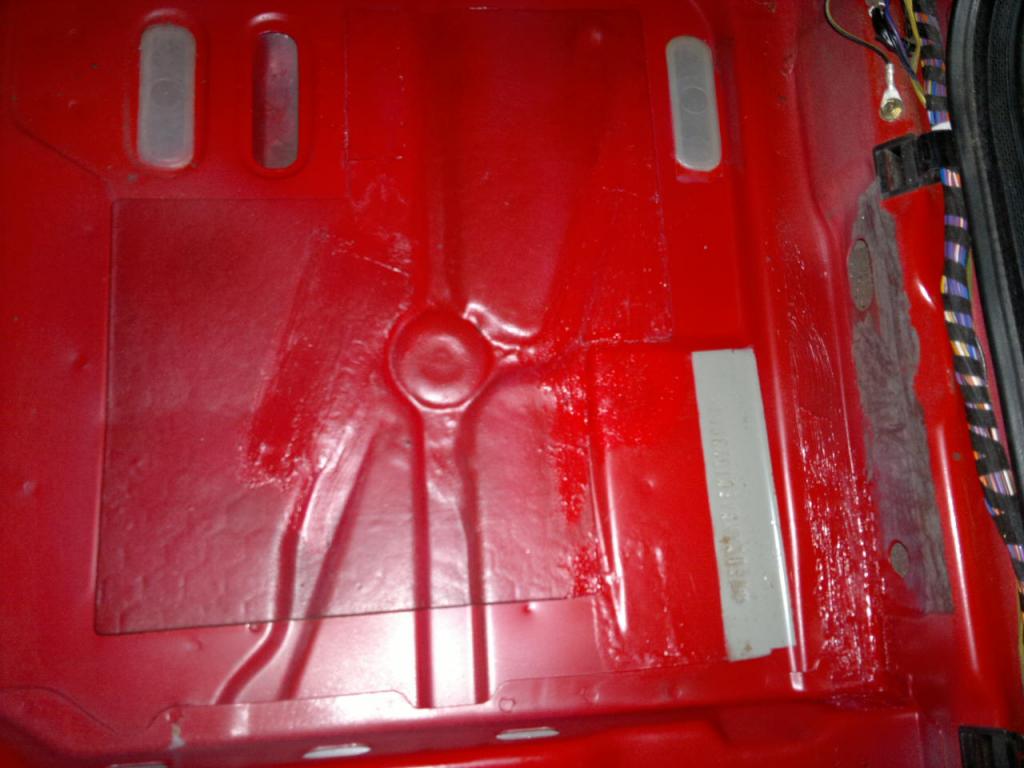

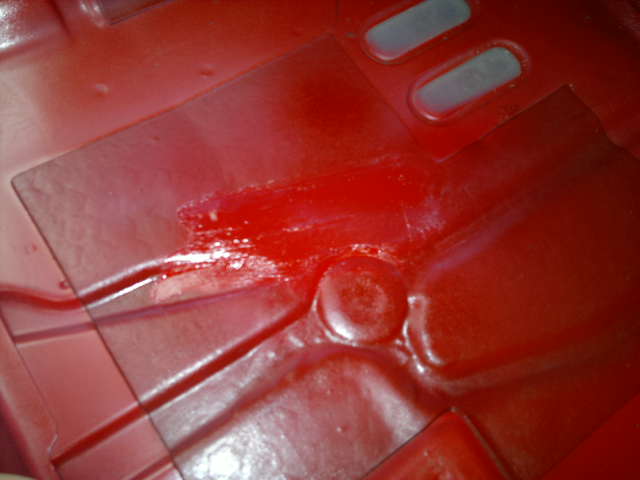

As good as new now.
Last edited by tuonokid on Thu May 17, 2018 12:24 am, edited 26 times in total.
0 x
2001 ColOrado red Puma 1.7, work in progress.
Westfield SEIW 1800 Zetec.
Building Westfield SEI 2.0 Zetec Blacktop on TBs.
Fiesta Style 1.25
Aprilia Tuono Factory.
1975 Yamaha TY80
Now working on my sons Anglia 105e

My Project Link - http://www.projectpuma.com/viewtopic.php?f=64&t=23509" onclick="window.open(this.href);return false;

User avatar
tuonokid
Project Elder
Project Elder
Posts: 3760
Joined: Fri Nov 23, 2012 8:41 pm
Model: 1.7
Location: Huddersfield

My Puma 1.7, more than a year on (A works in progress)

Post by tuonokid » Thu Mar 13, 2014 11:00 pm

Too warm today for grinding and welding so I decided to go ahead with the cold feed to the cotton air filter I'd thought about earlier when I fitted the filter.

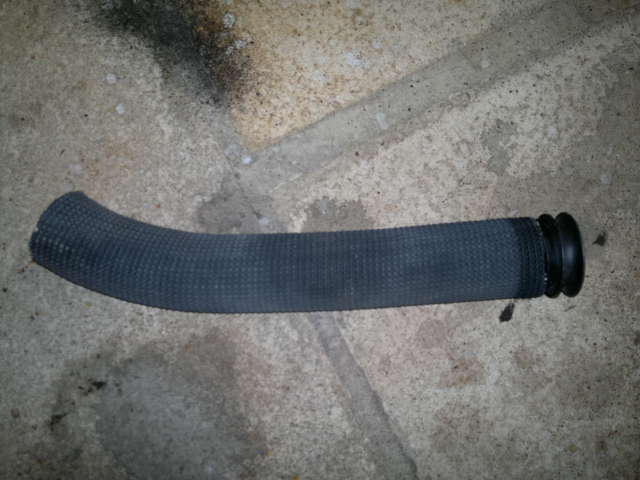

I'd found this in my Mothers garage last week It's the original air feed for the Puma. The pipe was no good to me as it's not flexible enough but the horn at the end was just what I wanted.

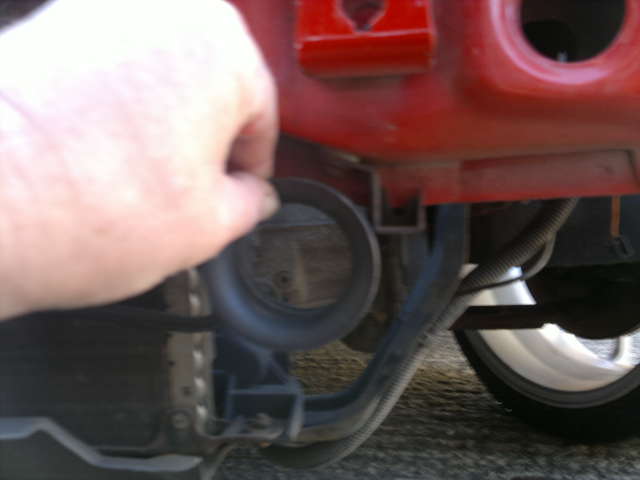

There looked to be just enough room to site the feed at the end of the rad grill.

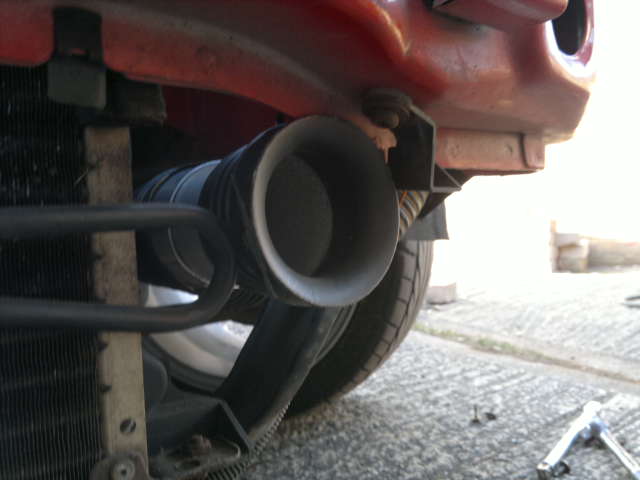

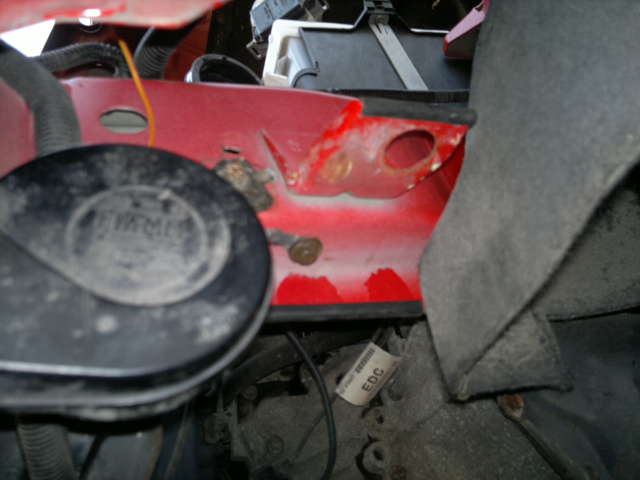

So took the bumper off and this is where I wanted the air horn, right next to the bracket for the N/S headlamp drain bracket


I needed to raise the position of the trumpet slightly as it was being masked by the bumper bib so I ground a bit off the front panel (yellow primer) and fitted a 6mm rivnut in the rad support cradle to mount a fixing bracket off.


These are the components I used; The Puma air horn, some thin walled alloy tube and a wire reinforced flexible pipe. I luckily had those already. The alloy pipe was a tight push fit into the air horn and the flexi pipe was a nice sliding fit over the alloy

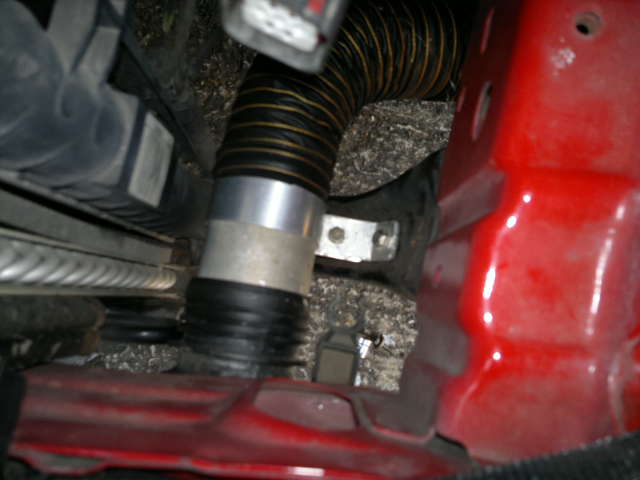

I made a fixing bracket out of alloy and fastened it onto the rivnut on the rad support bracket with a 6mm bolt.


I realised at this point that the horn would be in the way so I ground off the tang that holds the horn in position and then rotated it forwards a bit. I also fitted rubber trim to the chassis rail and airbox support bracket to stop it chafing the flexi pipe


I also had to file of part of the flange on the air horn to avoid contact with the power steering cooler

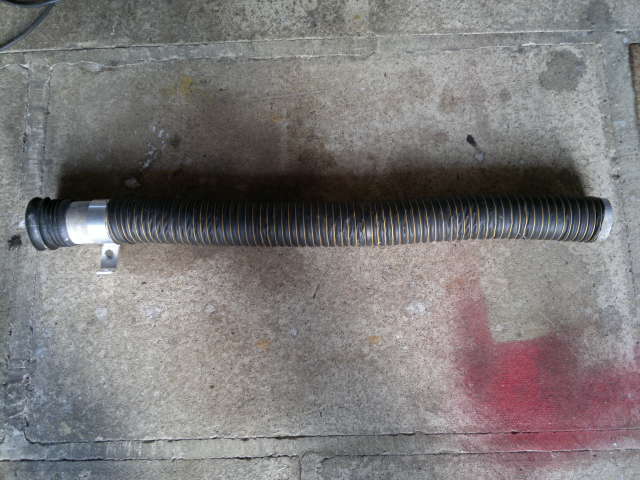

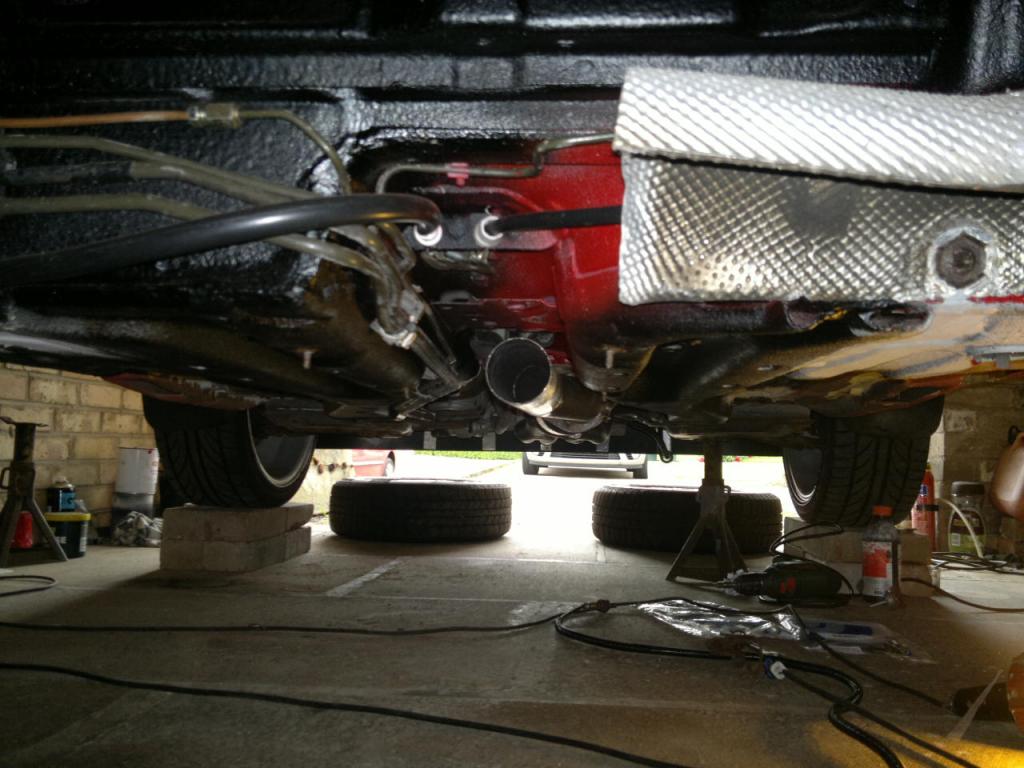

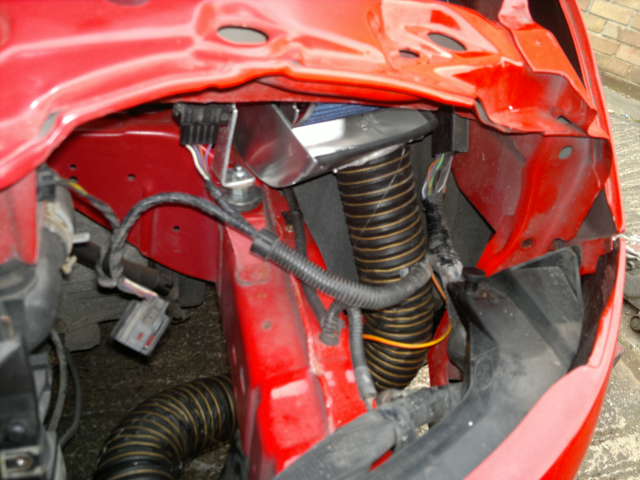

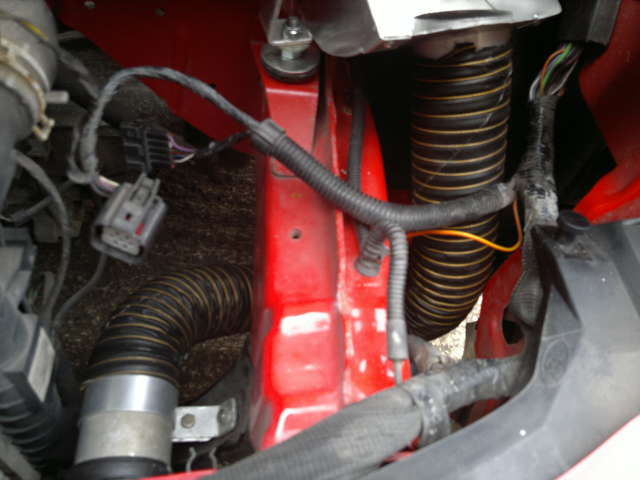

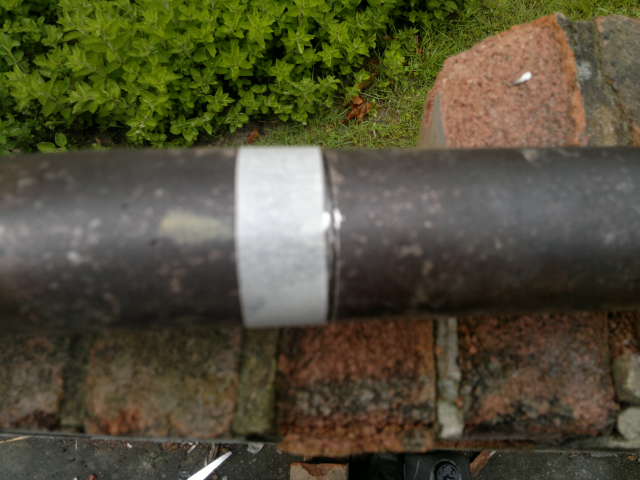

This is the route of the flexi pipe. I will cable tie the hose to the airbox support bracket when I'm happy with the positioning of it


I need to make an end plate now to hold the pipe and keep cold air around the filter.

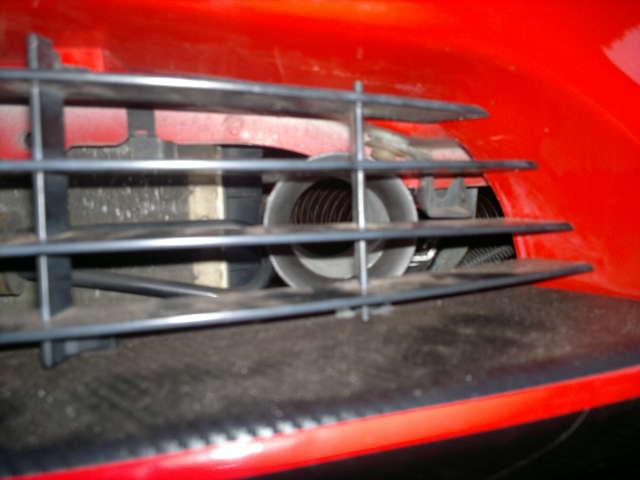

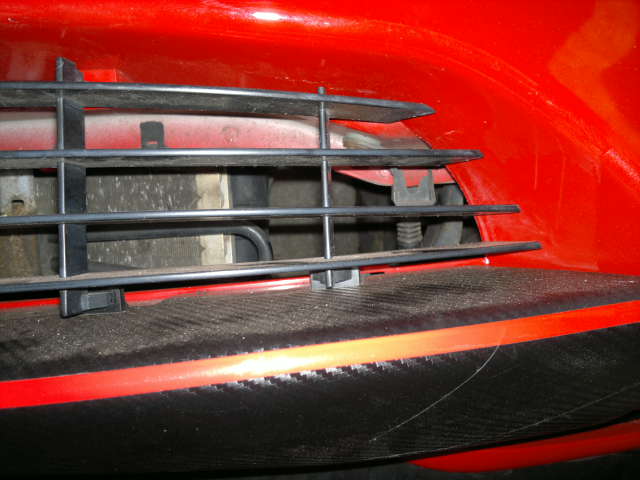

This is the location of the cold air feed behind the grill with the bumper back on.

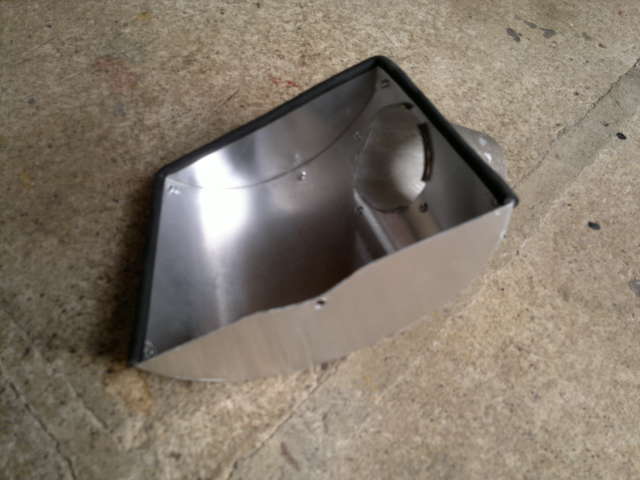

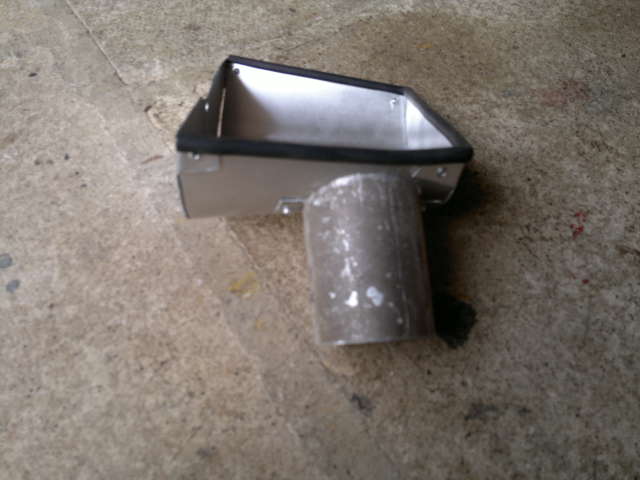

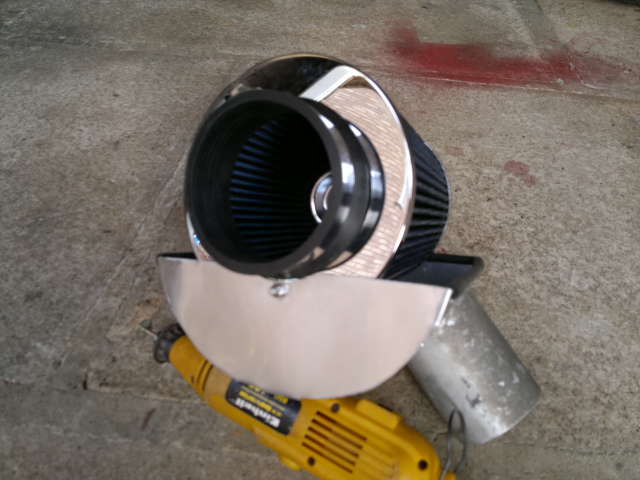

The first two photos above are the air funnel I made out of sheet alloy and the alloy tube I'd used at the other end of the air feed with some rubber trim just to tidy up and stop it rattling. The third photo was the unit assembled showing the fixing bolt through the base of the filter (I blew out the filter with the airline after I drilled it to get rid of any swarf)

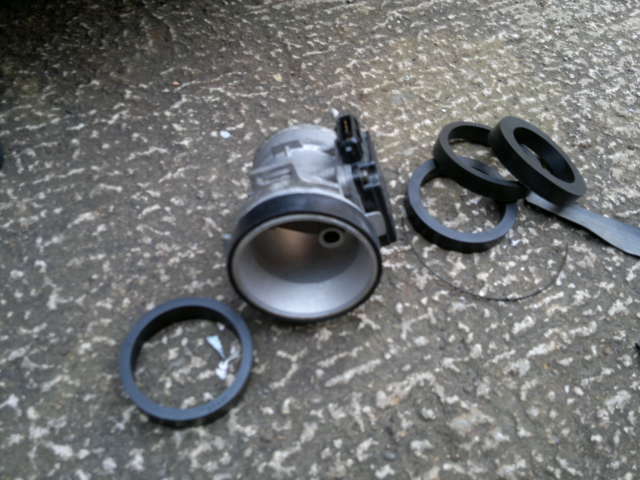

I managed to find a rubber seal so I could get rid of the inner tube I'd used previously.

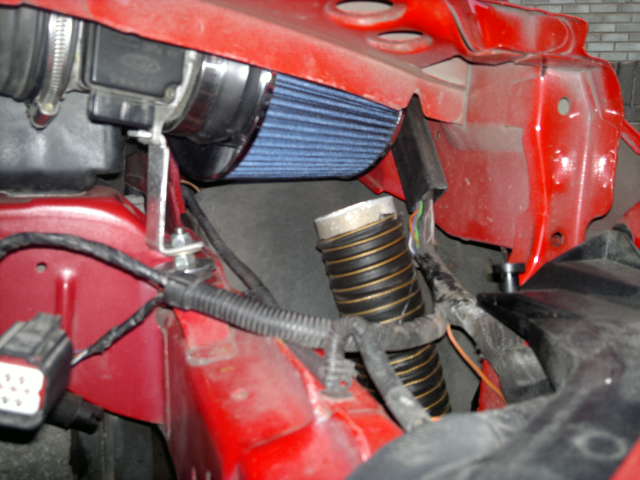

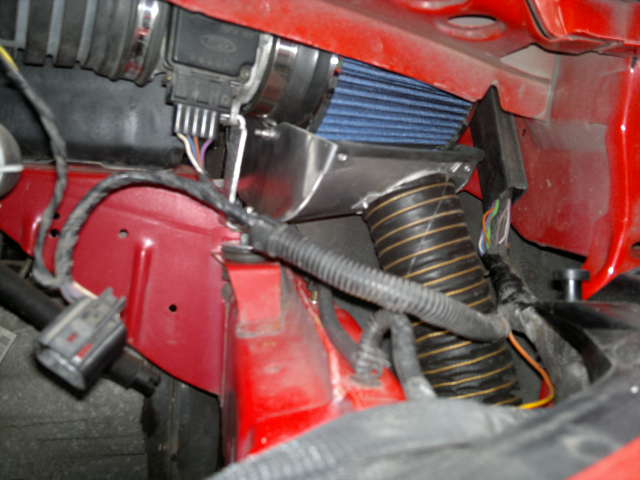

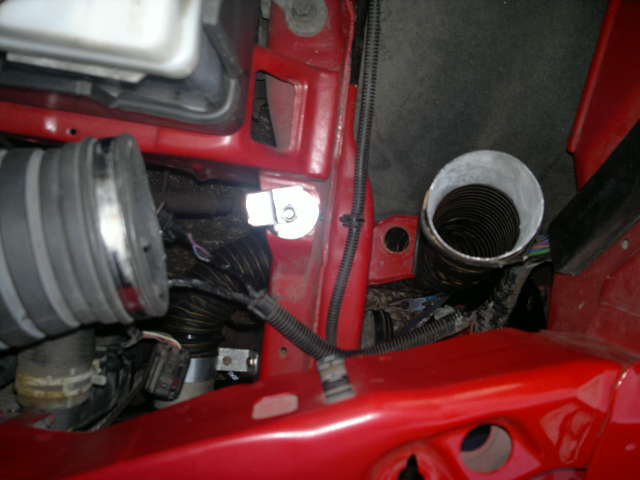

The last few photos just show the routeing and how everything fits together. The only thing missing is a jubilee clip to hold the air pipe under the airfilter.


This shows the top of the filter neatly avoiding the back of the headlight, the corner of the battery box and the bonnet stay.

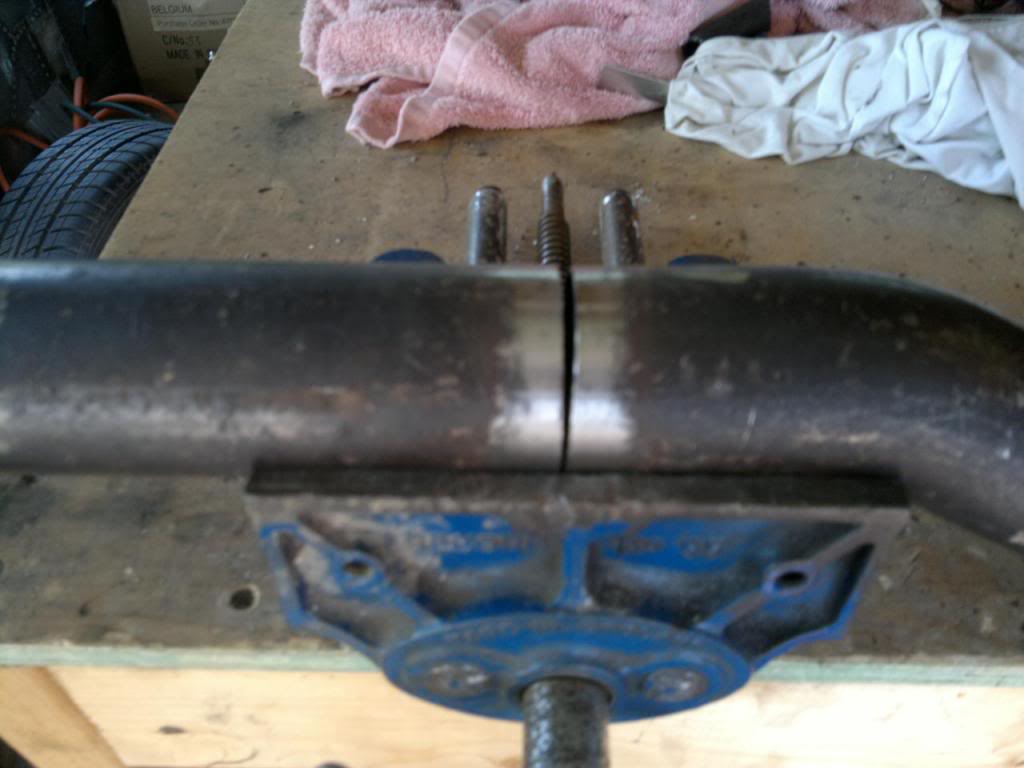

Wasn't happy with the pipe run past the air box mount so I dismantled it again and ground off the edge of mounting as this (after painting)
Last edited by tuonokid on Thu May 17, 2018 12:56 am, edited 44 times in total.
0 x
2001 ColOrado red Puma 1.7, work in progress.
Westfield SEIW 1800 Zetec.
Building Westfield SEI 2.0 Zetec Blacktop on TBs.
Fiesta Style 1.25
Aprilia Tuono Factory.
1975 Yamaha TY80
Now working on my sons Anglia 105e

My Project Link - http://www.projectpuma.com/viewtopic.php?f=64&t=23509" onclick="window.open(this.href);return false;

Glenn_
Project Petrol Head!
Project Petrol Head!
Posts: 519
Joined: Fri Oct 18, 2013 7:37 pm
Model: 1.7

Re: My Puma 1.7, more than a year on (A works in progress)

Post by Glenn_ » Fri Mar 21, 2014 12:45 pm

Looking good. Will that cheapo air filter be ok though. Ive heard loads of people say dont use cheap cone filters????
0 x

User avatar
tuonokid
Project Elder
Project Elder
Posts: 3760
Joined: Fri Nov 23, 2012 8:41 pm
Model: 1.7
Location: Huddersfield

Re: My Puma 1.7, more than a year on (A works in progress)

Post by tuonokid » Fri Mar 21, 2014 3:08 pm

Well I've had one on my Westfield for the last 5 years and it's been ok. It wants cleaning now but I don't think I'll bother as it's as cheap to just buy another filter.
0 x
2001 ColOrado red Puma 1.7, work in progress.
Westfield SEIW 1800 Zetec.
Building Westfield SEI 2.0 Zetec Blacktop on TBs.
Fiesta Style 1.25
Aprilia Tuono Factory.
1975 Yamaha TY80
Now working on my sons Anglia 105e

My Project Link - http://www.projectpuma.com/viewtopic.php?f=64&t=23509" onclick="window.open(this.href);return false;

User avatar
tuonokid
Project Elder
Project Elder
Posts: 3760
Joined: Fri Nov 23, 2012 8:41 pm
Model: 1.7
Location: Huddersfield

My Puma 1.7, more than a year on (A works in progress)

Post by tuonokid » Mon Mar 31, 2014 10:16 pm

Well after effing about with my front braided hoses for the last few days and still not being sure about them I decided I'd do something a lot easier. The 15mm breather filter I'd ordered arrived last Friday so I decided to fit that. First off I took the nearside headlight out.

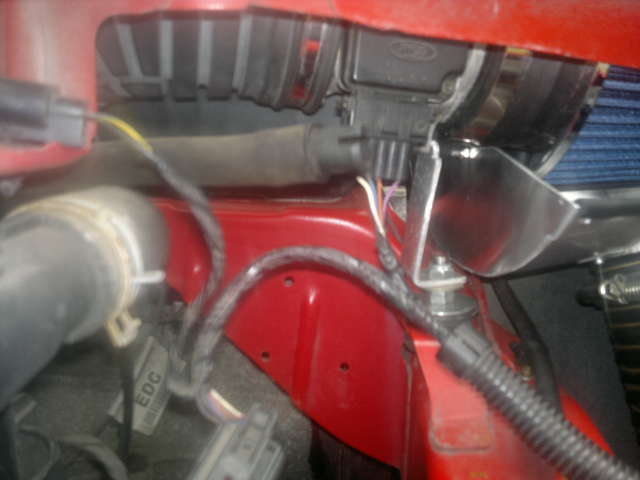

Here's the breather pipe with the plastic plug that goes into the standard airbox At the back of that was the engine mounting with some holes pre-drilled in it. I decided to make a bracket out of sheet alloy and mount it to the engine mounting with 2 x 6mm S/S nuts and bolts.

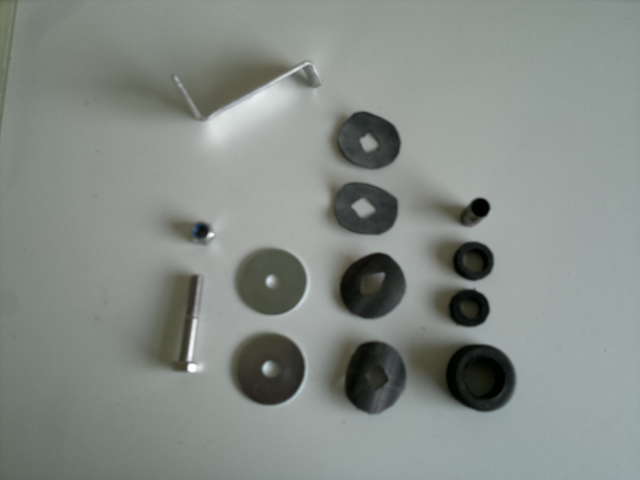

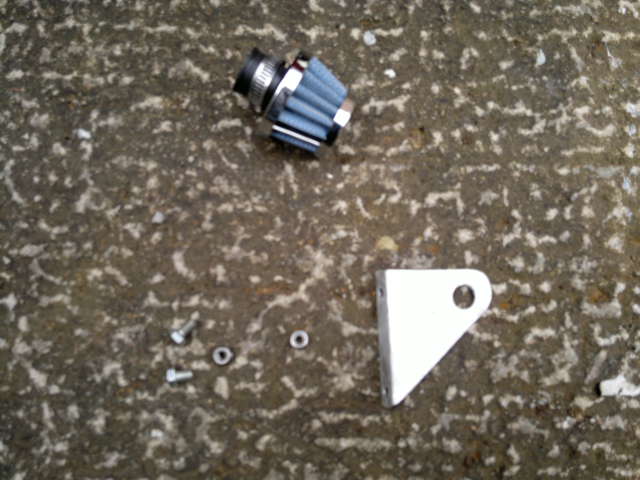

Here's the parts used.

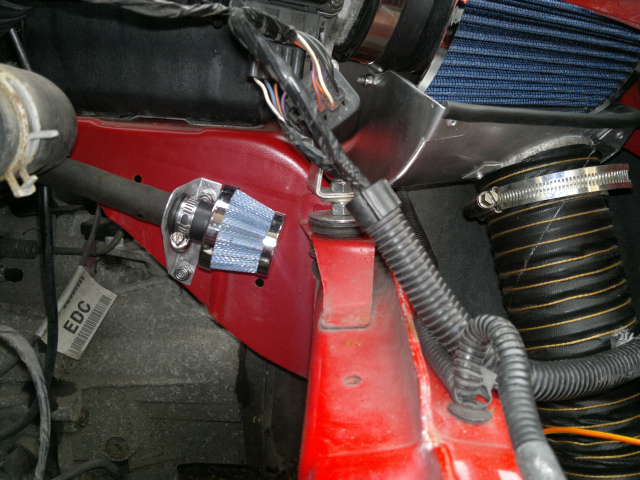

And here's the filter fixed in position
Last edited by tuonokid on Fri May 18, 2018 12:11 am, edited 8 times in total.
0 x
2001 ColOrado red Puma 1.7, work in progress.
Westfield SEIW 1800 Zetec.
Building Westfield SEI 2.0 Zetec Blacktop on TBs.
Fiesta Style 1.25
Aprilia Tuono Factory.
1975 Yamaha TY80
Now working on my sons Anglia 105e

My Project Link - http://www.projectpuma.com/viewtopic.php?f=64&t=23509" onclick="window.open(this.href);return false;

User avatar
tuonokid
Project Elder
Project Elder
Posts: 3760
Joined: Fri Nov 23, 2012 8:41 pm
Model: 1.7
Location: Huddersfield

My Puma 1.7, more than a year on (A works in progress)

Post by tuonokid » Mon Apr 07, 2014 8:06 pm

Next up was to get the screws out of the plastic cam cover as I'm shortly going to do my cambelt change. I'd had a look at them before and they looked a little chewed up so I tried an Alan key but not used much force on it as I didn't want to ruin an Alan key. I was going to use the diamond tipped cutting blades on my dremmel to cut a deep slot in the screws.
So masked off the engine bay to prevent dust from going where it shouldn't

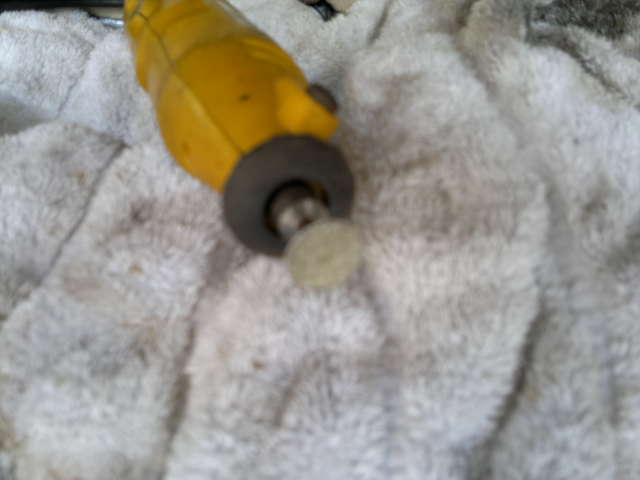

tiny diamond tipped wheel (10mm)

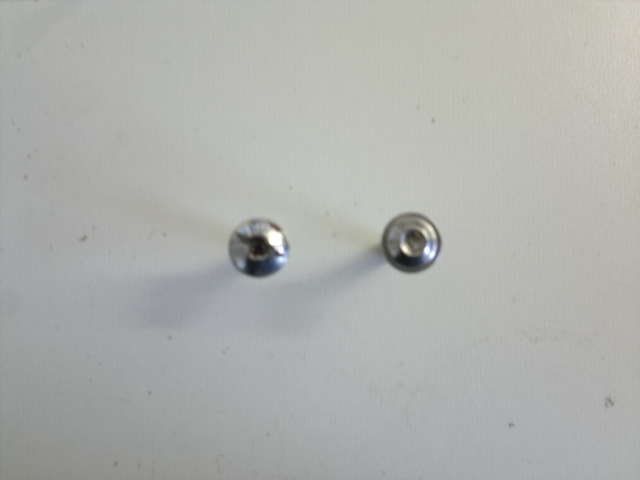

Slot in existing screw and new screws bought from Rufforth Autojumble on Saturday. The screws are S/S 6mm buttonheads with a washer cast into the bottom.


Once I'd ground a slot into the top of the existing screws I removed them using a screwdriver with a spanner on top.


I then cleaned out all the threads for the cover with a 6mm tap. When I build it back up I will give the screws a light coating of copperslip.

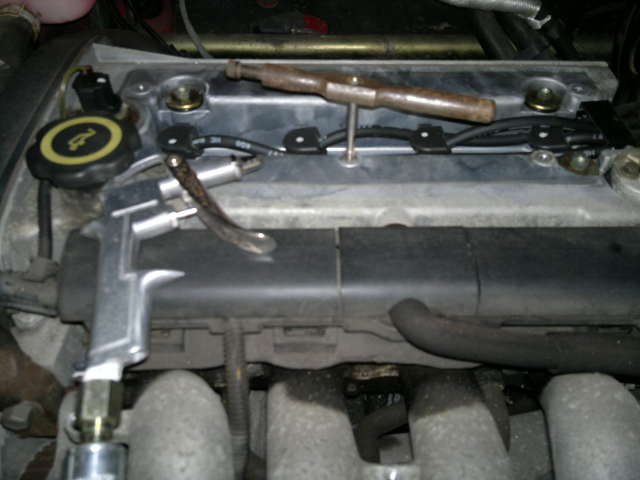

After I'd tapped out the threads I blew them out with the airline to make sure they were clean.
Last edited by tuonokid on Fri May 18, 2018 12:17 am, edited 12 times in total.
0 x
2001 ColOrado red Puma 1.7, work in progress.
Westfield SEIW 1800 Zetec.
Building Westfield SEI 2.0 Zetec Blacktop on TBs.
Fiesta Style 1.25
Aprilia Tuono Factory.
1975 Yamaha TY80
Now working on my sons Anglia 105e

My Project Link - http://www.projectpuma.com/viewtopic.php?f=64&t=23509" onclick="window.open(this.href);return false;

MS-DIY
Adolescent
Adolescent
Posts: 37
Joined: Mon Dec 09, 2013 10:49 am
Model: 1.7
Location: Denmark - Copenhagen

Re: My Puma 1.7, more than a year on (A works in progress)

Post by MS-DIY » Wed Apr 09, 2014 1:14 pm

That Dremel sure is all the money worth.
Nice work as all ways Barry!!
0 x
Best regards
Martin

1998 - Radiant Red Puma 1.7
1976 - Kawasaki Z650

User avatar
tuonokid
Project Elder
Project Elder
Posts: 3760
Joined: Fri Nov 23, 2012 8:41 pm
Model: 1.7
Location: Huddersfield

Re: My Puma 1.7, more than a year on (A works in progress)

Post by tuonokid » Wed Apr 09, 2014 10:44 pm

Cheers Martin
Never had one up to about three years ago and now I don't know how I went on without one. It's an Einhell and one of my mates got it for me off a Snap On man at his works. £20 in case with a flexi drive a stand and a few tools....bargain!
Barry
0 x
2001 ColOrado red Puma 1.7, work in progress.
Westfield SEIW 1800 Zetec.
Building Westfield SEI 2.0 Zetec Blacktop on TBs.
Fiesta Style 1.25
Aprilia Tuono Factory.
1975 Yamaha TY80
Now working on my sons Anglia 105e

My Project Link - http://www.projectpuma.com/viewtopic.php?f=64&t=23509" onclick="window.open(this.href);return false;

User avatar
tuonokid
Project Elder
Project Elder
Posts: 3760
Joined: Fri Nov 23, 2012 8:41 pm
Model: 1.7
Location: Huddersfield

My Puma 1.7, more than a year on (A works in progress)

Post by tuonokid » Tue Apr 15, 2014 11:21 pm

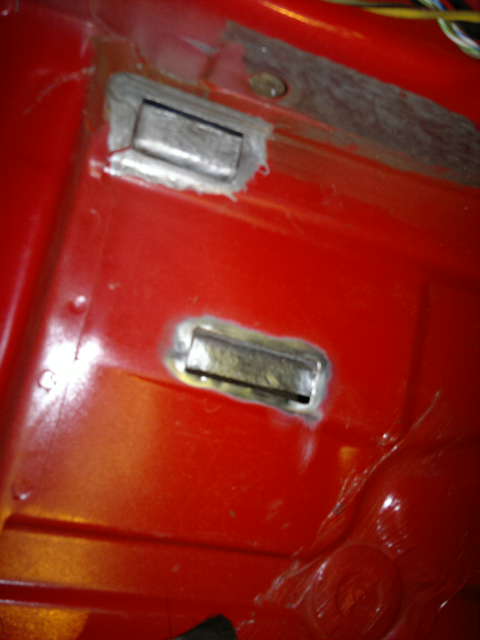

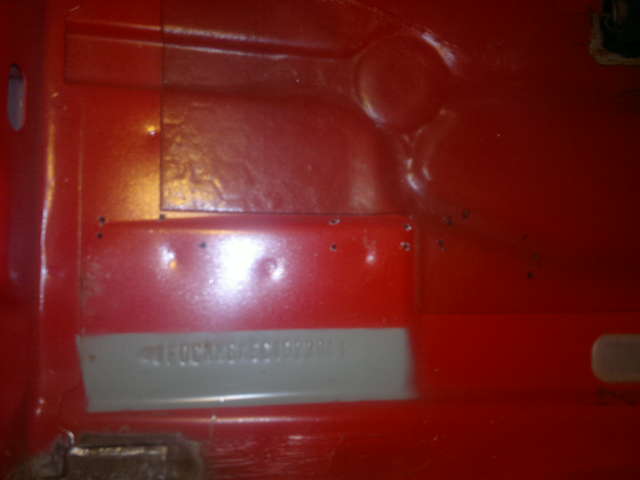

Back on to the floorpans again. The passenger side I've completed so now onto the drivers side.

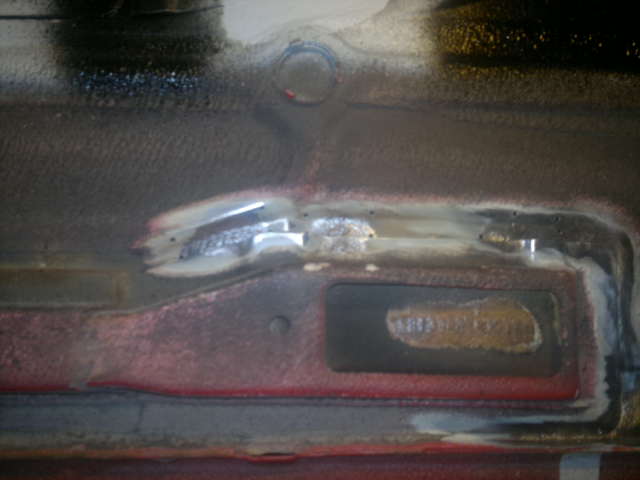

rear floorpan drilled out to define rot limit


front floorpan drilled out to define rot limit


rear floorpan cut out


front floorpan cut out


The front floorpan had to be cut a little more once I'd started as there was rust on the strengthener underneath


Patches cut and shaped apart from the middle one. There is a rib on the floorpan with a taper so the patches will have to be welded in at either end before the middle patch can be made.


Front patch ready to go


Rear patches welded in so that the middle patch could be shaped to suit


All rear patches welded in now



Patches in etch primer from underneath.



Sound mat ready for installing



Sound mat installed and painted



Patches stone chipped underneath
Last edited by tuonokid on Fri May 18, 2018 12:42 am, edited 41 times in total.
0 x
2001 ColOrado red Puma 1.7, work in progress.
Westfield SEIW 1800 Zetec.
Building Westfield SEI 2.0 Zetec Blacktop on TBs.
Fiesta Style 1.25
Aprilia Tuono Factory.
1975 Yamaha TY80
Now working on my sons Anglia 105e

My Project Link - http://www.projectpuma.com/viewtopic.php?f=64&t=23509" onclick="window.open(this.href);return false;

ArtfulHussy
Project Petrol Head!
Project Petrol Head!
Posts: 1109
Joined: Wed Feb 06, 2013 2:13 pm
Model: 1.7

Re: My Puma 1.7, more than a year on (A works in progress)

Post by ArtfulHussy » Wed Apr 16, 2014 4:22 pm

Beautiful metalwork there Barry! 8-)
0 x

User avatar
tuonokid
Project Elder
Project Elder
Posts: 3760
Joined: Fri Nov 23, 2012 8:41 pm
Model: 1.7
Location: Huddersfield

Re: My Puma 1.7, more than a year on (A works in progress)

Post by tuonokid » Thu Apr 17, 2014 1:29 am

Thanks for that, I saw your post tonight and I hope you have better luck in the future. There's nowt like working on old cars :grin:
Barry
0 x
2001 ColOrado red Puma 1.7, work in progress.
Westfield SEIW 1800 Zetec.
Building Westfield SEI 2.0 Zetec Blacktop on TBs.
Fiesta Style 1.25
Aprilia Tuono Factory.
1975 Yamaha TY80
Now working on my sons Anglia 105e

My Project Link - http://www.projectpuma.com/viewtopic.php?f=64&t=23509" onclick="window.open(this.href);return false;

User avatar
tuonokid
Project Elder
Project Elder
Posts: 3760
Joined: Fri Nov 23, 2012 8:41 pm
Model: 1.7
Location: Huddersfield

My Puma 1.7, more than a year on (A works in progress)

Post by tuonokid » Fri Apr 25, 2014 3:17 pm

Still working on the floorpans and moving onto the areas that are covered by the rubberised underseal


This is the chassis strengthener that runs at the side of the sill at the pass side
The seam is fairly corroded to the inside but there is also a small area right next to the sill


Same area underneath with all the rubberised underseal removed but with corrosion still present


I used Jenolite to indicate any rot areas and cleaned them off with the dremmel


followed by a coat of etch primer


This is above the strngthener in the corner of the inner sill and the seat crossmember


A quick rub down revealed rot through from below


The rot quickly became this.


View from below


A couple of inches away from this hole there was another patch of rust forming above the other side of the strengthener that I'd cleaned up previously


That became this


Which turned into this



View from below


Over to the other side. What looked like a rust blister after a little work.....




turned to this


And then to this


View from below showing slot next to chassis rail


Next up was the corner of the seat crossmember (same as on pass side)


View from below showing apparent lack of rust


Rust cut out pretty much the same as the other side


View from below with rubberised underseal taken off.



Drivers side strengthener prior to taking off underseal...not looking good


This side is far worse than the passenger side as there's at least 3 small patches that will require letting in and the rear of the strengthener is actually under the seat crossmember so it can only be welded in from below. I might have to just cover this until I can get it on my mates 4 poster and weld it up from below.


First of all I drilled holes in the floor to mark the extent of the corrosion as you can't see it from inside the car.


View from above


View from below with patches cut out apart from under the seat crossmember.


View from above showing patches cut up and shaped ready to weld in.


Patches welded in and just in the process of cleaning up and my Dremmels worn out it's brushes, so it's off up to my sons to borrow his :cry:


Dremel borrowed, and tidying up finished with a coat of etch primer


Joint sealant and sound mat installed as standard, ready for paint tomorrow


Painted and nearly as good as new


View from underneath before prep. I can primer the welded areas but to the rear of the strengthener it's rusty. Unfortunately the seat crossmember is directly above it so I'm going to seal that area of floorpan with fibreglass tissue and do the job maybe this winter. It's a lot of work as I'll have to cut out part of the seat crossmember just to get to it.


Newly welded patches etch primed and rusty area jenolited including underside of vin no. This idea of Ford to put the vin in an open area of strengthener is not their finest hour. There was so much crap in it I had to blow out with the air line. No wonder it rots.


Fibreglass tissue applied to the vin no and to the rear of the strngthener
Last edited by tuonokid on Sat May 19, 2018 5:35 pm, edited 90 times in total.
0 x
2001 ColOrado red Puma 1.7, work in progress.
Westfield SEIW 1800 Zetec.
Building Westfield SEI 2.0 Zetec Blacktop on TBs.
Fiesta Style 1.25
Aprilia Tuono Factory.
1975 Yamaha TY80
Now working on my sons Anglia 105e

My Project Link - http://www.projectpuma.com/viewtopic.php?f=64&t=23509" onclick="window.open(this.href);return false;

User avatar
Seg
Project Regular
Project Regular
Posts: 215
Joined: Mon Jan 27, 2014 11:37 am
Model: 1.7
Location: Leeds
Contact:

Re: My Puma 1.7, more than a year on (A works in progress)

Post by Seg » Sat May 17, 2014 12:02 am

Great work mate. Just reading through for some inspiration for cleaning all the rust from mine.

Came across this photo of yours in this thread. Can anyone else see the eyes?


Spooky or what?
0 x

User avatar
tuonokid
Project Elder
Project Elder
Posts: 3760
Joined: Fri Nov 23, 2012 8:41 pm
Model: 1.7
Location: Huddersfield

Re: My Puma 1.7, more than a year on (A works in progress)

Post by tuonokid » Sat May 17, 2014 12:05 am

Hi Simon
Actually I can see the eyes now you point them out... and they look very angry.
Barry
0 x
2001 ColOrado red Puma 1.7, work in progress.
Westfield SEIW 1800 Zetec.
Building Westfield SEI 2.0 Zetec Blacktop on TBs.
Fiesta Style 1.25
Aprilia Tuono Factory.
1975 Yamaha TY80
Now working on my sons Anglia 105e

My Project Link - http://www.projectpuma.com/viewtopic.php?f=64&t=23509" onclick="window.open(this.href);return false;

User avatar
Seg
Project Regular
Project Regular
Posts: 215
Joined: Mon Jan 27, 2014 11:37 am
Model: 1.7
Location: Leeds
Contact:

Re: My Puma 1.7, more than a year on (A works in progress)

Post by Seg » Sat May 17, 2014 12:08 am

Maybe your cat is possessed? :twisted:
0 x

User avatar
tuonokid
Project Elder
Project Elder
Posts: 3760
Joined: Fri Nov 23, 2012 8:41 pm
Model: 1.7
Location: Huddersfield

Re: My Puma 1.7, more than a year on (A works in progress)

Post by tuonokid » Sat May 17, 2014 12:15 am

Possessed by an old git I think Simon :grin: I think this is another Jesus in my toast story.
Barry
0 x
2001 ColOrado red Puma 1.7, work in progress.
Westfield SEIW 1800 Zetec.
Building Westfield SEI 2.0 Zetec Blacktop on TBs.
Fiesta Style 1.25
Aprilia Tuono Factory.
1975 Yamaha TY80
Now working on my sons Anglia 105e

My Project Link - http://www.projectpuma.com/viewtopic.php?f=64&t=23509" onclick="window.open(this.href);return false;

User avatar
Seg
Project Regular
Project Regular
Posts: 215
Joined: Mon Jan 27, 2014 11:37 am
Model: 1.7
Location: Leeds
Contact:

Re: My Puma 1.7, more than a year on (A works in progress)

Post by Seg » Sat May 17, 2014 12:35 am

LMAO Barry. Yeah, I think you might be right.
0 x

rnnicol
Project Regular
Project Regular
Posts: 259
Joined: Thu Oct 25, 2012 9:59 pm
Model: 1.7

Re: My Puma 1.7, more than a year on (A works in progress)

Post by rnnicol » Sun May 18, 2014 11:04 pm

Hi, like the guide, I'm about to take on the job of rust proofing my car, and currently in the process of stripping every thing of the car, did you have any issues fitting the rear disks, I'm buying a set of a mate who never got round to fitting them, so anything I need to look out for, any info would be great, thanks there of a st170, so not sure if they come with abs and handbreak cable.
0 x

User avatar
tuonokid
Project Elder
Project Elder
Posts: 3760
Joined: Fri Nov 23, 2012 8:41 pm
Model: 1.7
Location: Huddersfield

Re: My Puma 1.7, more than a year on (A works in progress)

Post by tuonokid » Sun May 18, 2014 11:46 pm

Hi mnicol
Thanks for that and as regards the rear discs and calipers if you don't want to keep the ABS it's a straightforward mechanical swap but best to buy a ST150 handbrake cable. If you do want to keep the ABS it's a bit of a minefield as there's some machining work that needs doing on the ST170 hubs as the sensors and rings don't match as well as lots of issues with the standard Puma rear ABS sensors. I could tell you the way I've done mine but mine isn't proven yet so do a search on here. I think Wild E Coyote (I could be mistaken) has done a posting with all the details but there are others as well
Barry
0 x
2001 ColOrado red Puma 1.7, work in progress.
Westfield SEIW 1800 Zetec.
Building Westfield SEI 2.0 Zetec Blacktop on TBs.
Fiesta Style 1.25
Aprilia Tuono Factory.
1975 Yamaha TY80
Now working on my sons Anglia 105e

My Project Link - http://www.projectpuma.com/viewtopic.php?f=64&t=23509" onclick="window.open(this.href);return false;

User avatar
tuonokid
Project Elder
Project Elder
Posts: 3760
Joined: Fri Nov 23, 2012 8:41 pm
Model: 1.7
Location: Huddersfield

My Puma 1.7, more than a year on (A works in progress)

Post by tuonokid » Thu May 22, 2014 7:41 pm

Fed up with doing bodywork for the moment so I decided to see to the routing of the exhaust as I'd noticed that one of the new flanges must have distorted when they were tigged on and the exhaust would have rattled on the 2nd heatshield.


Exhaust pipe too close to offside of tunnel.


To get the exhaust over to the N/S of the car I had to cut the pipe at the N/s nearly all the way around


The cut wasn't thick enough to move the pipe over so I had to grind it out to a wedge shape,

Some of the extras needed for welding up stainless pipes. Argon gas, stainless wire, a double outlet gas supply and very important, a stainless brush for cleaning the welding area.

The double outlet supply. One goes to the MIG and the other goes into the inside of the pipe to be welded

Pipe welded up. Stainless welds really nicely for me but I find even for relatively thin pipe it welds best on max power on my MIG.

The gasket I'd used to assemble the exhaust was knackered so I thought I'd make my own out of electrical wire (it might work!). I'd put a stub pipe on each of the joints to the cat so that holds the gasket in place whilst the flange bolts should crush it nicely

Gasket on flange

Pipe back in place and in the right position now so it won't rattle the heatshield.
Last edited by tuonokid on Sat May 19, 2018 5:47 pm, edited 23 times in total.
0 x
2001 ColOrado red Puma 1.7, work in progress.
Westfield SEIW 1800 Zetec.
Building Westfield SEI 2.0 Zetec Blacktop on TBs.
Fiesta Style 1.25
Aprilia Tuono Factory.
1975 Yamaha TY80
Now working on my sons Anglia 105e

My Project Link - http://www.projectpuma.com/viewtopic.php?f=64&t=23509" onclick="window.open(this.href);return false;

artie
Adolescent
Adolescent
Posts: 64
Joined: Fri Jan 21, 2011 9:16 pm
Model: 1.7

Re: My Puma 1.7, more than a year on (A works in progress)

Post by artie » Tue May 27, 2014 7:59 pm

Fascinating informative thread Barry your work is a credit to you mate.
Loved the pics of the RS,s Ive had a few myself along with XR2,s,3,s Harriers as you say the prices they fetch now is eyewatering.
One pic from 81
1 x

Post Reply

Return to “ProjectPuma”
